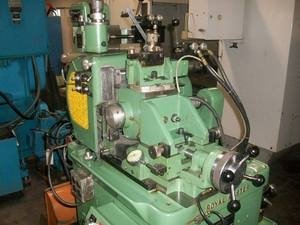

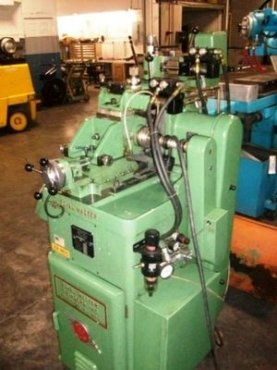

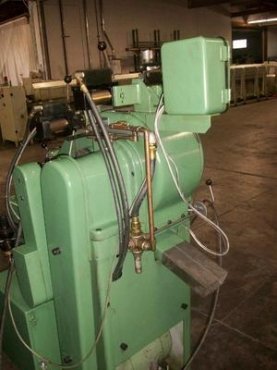

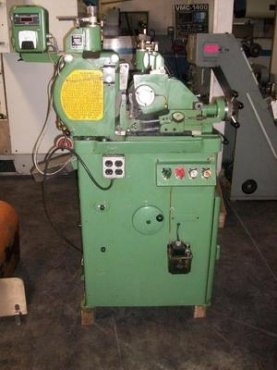

ROYAL MASTER TG12X3, 7.5 HP, REBUILT BY ROYAL MASTER IN 2000, Hyd. Wheel Dressers

General Specifications As Per Brochure

Capacity:
Infeed & Thrufeed: 0.004" to 1.5"
Length: 12' on 0.5"
Wheels:
Max. Grinding: 12" x 3"
Min. Grinding: 10" x 1/4"
Max. Regulating: 6" x 3"
Min. Regulating: 1/4" w/Spool
Spindle Speeds:
Grinding (Constant): 2040 RPM
Regulating (Inf. Variable): 25 to 480 RPM
Regulating Wheel Head:
Max. Angle of Tilt for Thrufeed: 6 Deg.
Max. Swivel for Taper: 5 Deg.
Floor Space (Approx.): 24" x 48"
Weight (Approx.): 2800 Lbs.

Grinder was rebuilt by ROYAL MASTER IN 2000

Grinding Wheel Hyd. Dresser
Regulating Wheel Hyd. resser
In-Feed
Thru-Feed

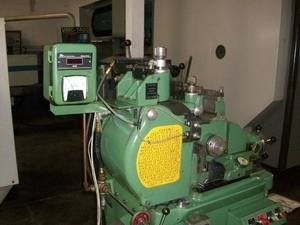

Red Lion # DT3A RPM & Amp Meter
Accessory Plug (120 Volt)

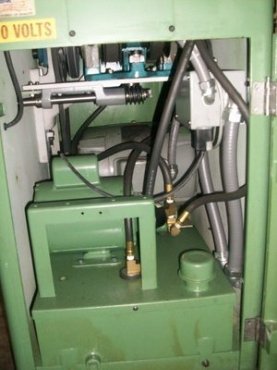

Coolant Tank & Pump
Automatic Feed Conveyor & Exit Rack

Machine: 30" x 41" x 64" 2,800 lbs
Coolant Tank/Pump: 18" x 24" x 34" 500 lbs
Tray: 18" x 24" x 7" 150 lbs

36"x34"x58"

2800
