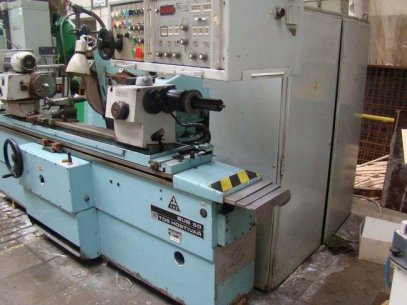

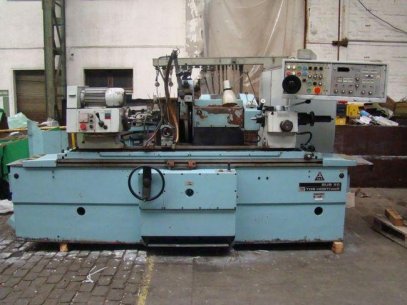

Engine type cylindrical grinding
Manufacturer: Tos Hostivar
Model: BUB50
Year: 1989

Main data

Distance: 1000mm
Height: 250mm
Round: 500mm


Longitudinal feed

(Z axis): travel: 1200mm
Pivot table range: +8 ° 30 '4 ° 30 '
Table speed: 0.05 - 6m/min

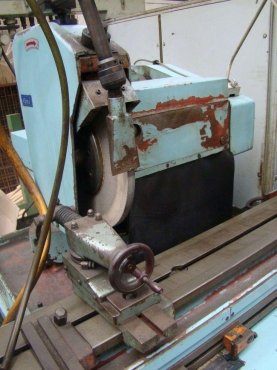

Wheel head

Wheel head swiveled around -15 °, 45 °
Wheel diameter: 500mm
Width: 80mm
Bore: 203mm
Motor power: 9.5 kW
Peripheral speed max. 45m / s

Wheel spindle speed: 1720 min ~ ¹ ¹ ~ 1980min
Speed ​​of the driver disk: 18 ~ 112min-¹, 90-560min ~ ¹

Workhead

Speed ​​2 stages :18-112min ~ ¹, 90-560min ~ ¹
Rotation: 90 °
Workpiece weight between centers: 350Kg

Tailstock

Receiving cone: MK5
Spindle stroke: 40mm
SDES tailstock clamping force: 0-4000N


Total power consumption: 16 kVA
Weight: 5400kg

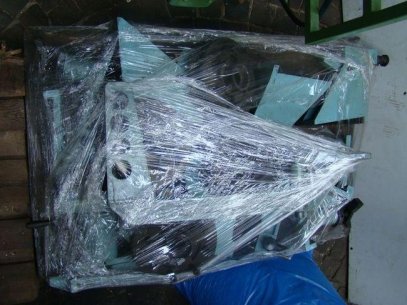

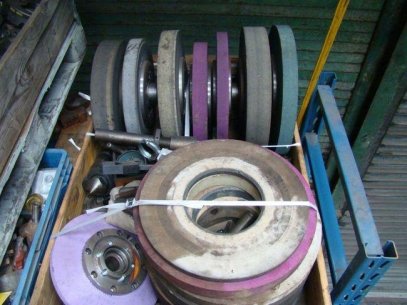

The machine has a lot of accessories such as lunettes Seitenabrichteinrichtung feed grinding stones recordings etc

-
