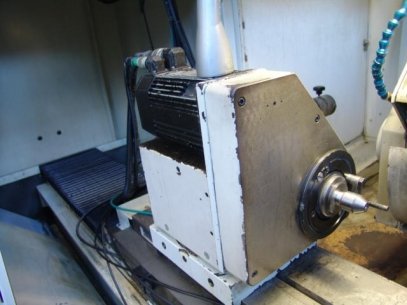

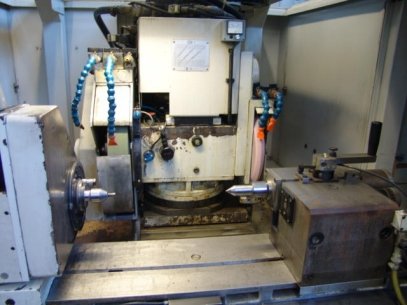

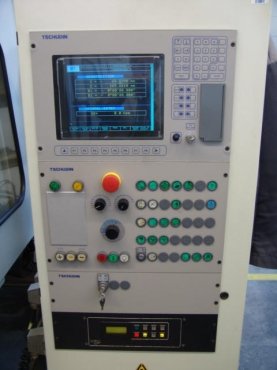

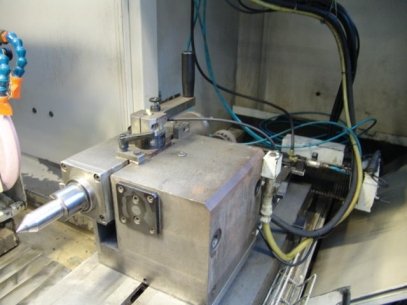

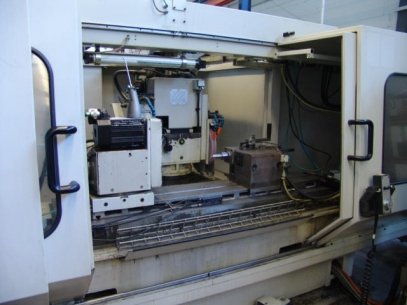

equipped with the latest universal Rundschleifimaschine Tschudin TL multi-axis controller manufacturer: TSCHUDIN Year: 18.11. 1996 Main data: 1 Distance between centers 1000 mm 2 Centre height 175 mm 3 Grinding length 1000 mm 4 Displacement X CHSE-340 mm 5 Z-adjustment CHSE 1400 mm 6 Resolution 0.0001 mm X-/Z-axis 7th Max speed X-/Z-axis 8000 mm / min 8 Grinding wheel size 500 x 100 mm 9 left Grinding wheel size right 300 x 50 mm 10 Grinding wheel peripheral speed m/s300 left 45 right 27 m / s 11 Wheelhead swivel range 300 12th Workpiece weight between centers max. 13th 250 kg Load on chucked max. 200 Nm Standard accessories: 1 Tschudin CNC Bahnsteürung second 3.5-inch floppy drive 3rd 12 "CRR-Color Screen fourth central control cabinet, free-standing fifth electric oven, free-standing sixth Automatic central lubrication 7th wheelhead including wheel guard to hold external grinding wheel on the left. Intended for inclusion of surface grinding wheel right and internal grinding unit is automatically set by the CNC Thyristor Power 7.1 Storage:. Hydrodynamical 7.2 Engine power:.. 7.5 VSTi 7.3 swivel: 300 07/04 division. 1 8 workhead with fixed and rotating spindle 8.1 Storage:.. bearing 8.2 Photo cone. MK 6 8.3 swivel. + . 30/-90 04/08 Speed range: 20-800 min-1 8.5 8.6 accuracy at work.. [...Technical data truncated]
