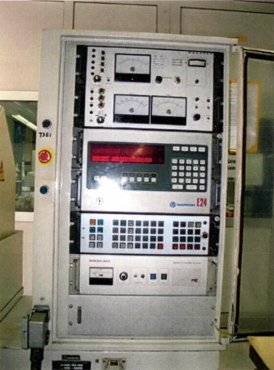

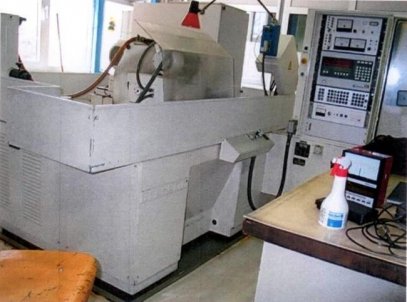

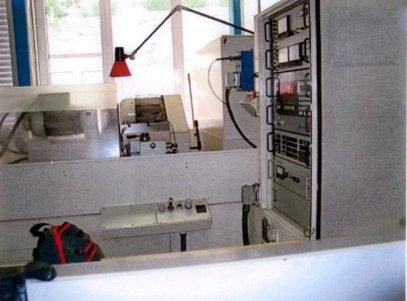

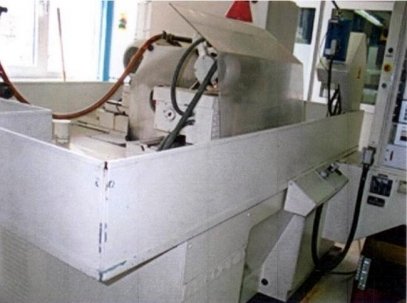

CNC Cylindrical Grinding Machine Manufacturer: Tschudin Model HTG 22 Control: Marper E24 wheel diameter x width: 500 x 80 mm Speed: 1150/1300/1550 rpm longitudinal slide movement path: 420 mm Pinolenkonus: MT3 Spindle stroke: 20 mm quill Spring: 4-15 kp setting the fine adjustment: + / - 0.02 mm on the workpiece diameter motor power: 5.5 kW peak height: 100 mm turning length: 450 mm All information without guarantee
