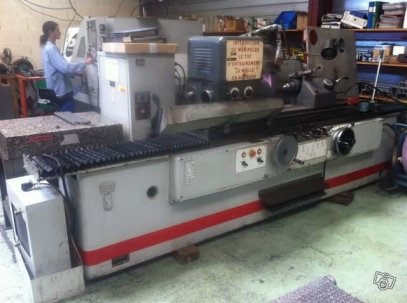

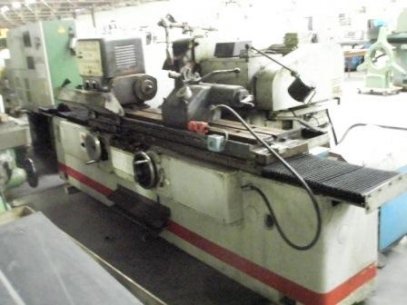

Cylindrical Grinding Machine Make WMW Type SA 315/1 - 1000 Year 1975 Technical data: maximum swing diameter 315 mm Grinding length 1000 mm Largest Largest workpiece weight 400 kg of media, mass dia gram. 630 mm width 200 mm bore 305 gr mm table speed of longitudinal loops from 0.05 to 5 m / min -1 per table adjustment handwheel fine 4.9 mm 26.5 mm rough turning of the upper platen 7 20 workpiece revolution (10 levels) 22.5 - 500 min-1 swivel against the grinding wheel 105 of the body slept away 15 spindle speed at V = 35 m / s 1060/1200/1400 U / min. min at V = 50 m / sec 1500 U /. Power consumption 7.5 kW Weight 4.6t External dimensions LxWxH 3800 x 2000 x 1500 mm - VARIOUS WHEELS AND FLANGES-coolant system
