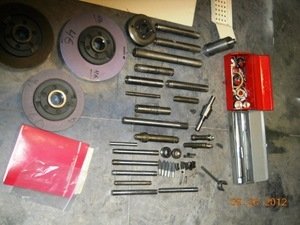

Head swivels 120 degrees, Swing down internal, loaded with tooling
Specifications:

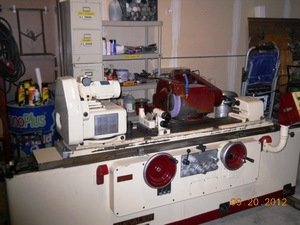

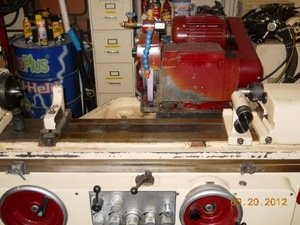

One used Chevalier Md. GU-1140A Cylindrical Grinder
S/N: L-91368
Year: 1997
Condition: Excellent
Specifications:
Swing Over Bed 10.629"
Maximum Grinding Length 39.4
Maximum Grinding O.D.: 9.84"
Maximum Work piece Weight 700LBS
Speed Range, Variable 11-500 RPM
Swivel Angle: 120 Degrees (90 Degrees CCW, 30 Degrees CW
Spindle Center: No. 4 M.T.
Spindle Rotation: Dead and Live Spindle
Table Speed: 2 - 155 IPM
Table Hand wheel Per Revolution: 0.78"
Table Swivel Angle (CCW/CW): 9 Degrees/4Degrees
Table Minimum Traverse Length 0.3"
Maximum Swivel 30 Deg CCW or 30 Deg CW 14" WH
Grinding Wheel (Standard): 14" x 1-3/4" x 5"
Grinding Wheel Speed (2 Steps), Standard: 1730, 1917 RPM
Maximum Periphery Speed: 6500 SFPM
In feed Travel: 7.87"
Rapid Advance & Retract, Maximum Travel Distance: 1.57"
Maximum Grinding Wheel Travel: 6.30"
In feed Hand wheel Per Revolution: 0.039"
Maximum Automatic In feed Travel: 0.029"
Traverse Grinding Auto. Increment, Rough Grinding: .0002" - .0016"
Finish Grinding: .00004 - .0004 IPM
Quill Travel: 1.18"
Center: No. 4 M.T.
Equipped With:
5 HP Wheelhead Motor
2 HP Hydraulic Motor
1 HP Swing Down Type Internal Grinding Attachment
Lever Operated Tailstock
Electric and Hydraulic Control Panel

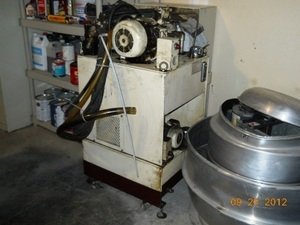

Hydraulic Heater/Coolant Unit

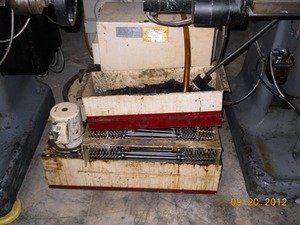

Coolant System w/Magnetic Separators

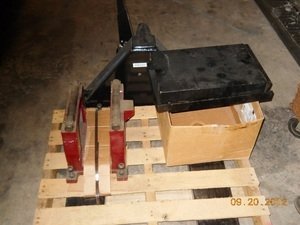

Three Shoe Steady Rest

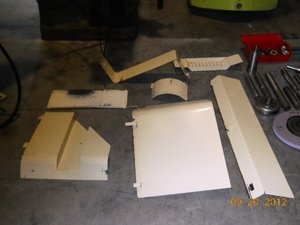

Splash Guards
Automatic Lubricator
This machine may be inspected under power in Warren, Michigan at your convenience.
