Description:

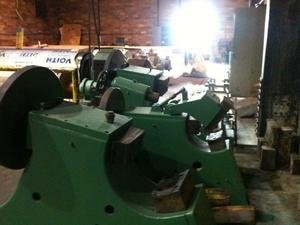

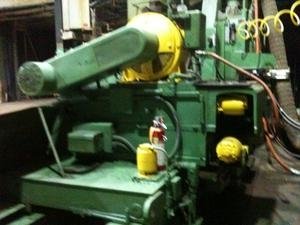

50" X 336" Cincinnati Roll Grinder

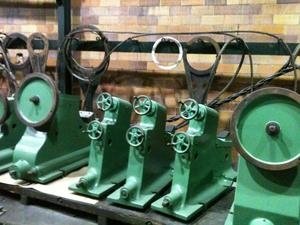

2 sets - Journal Rest
2 Sets - Steady rest
Specifications:
Reconditioned 50” X 336” Cincinnati
Specifications:
Maximum swing over bed 50”
Maximum Roll Length 336”

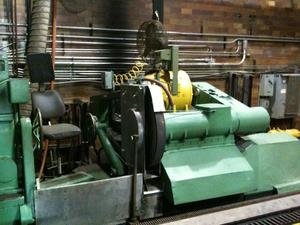

Wheelhead
Size of grinding wheel – std. 36” X 4” X 12”
Grinding wheel speeds 0-1200 variable
Weight of wheelhead without motor 14,500 lbs.
Headstock
Headstock speeds 0-34 rpm variable
Headstock horsepower 60 hp
Weight of Headstcok 21,000 lbs
Infeed
Infeed increments, programmable .0000 10” - .004”
Maximum infeed rate (Rapid) 30 ipm
Grinding Carriage
Traverse Motor
Traverse Speeds
Weight of carriage assembled, completely with motor 30,000 lbs
Footstock
Work Center Diameter X Length 6” X 20 1/8”
Maximum Longitudinal Movement 5”
Weight 8,400 Lbs.
Standard Equipment of the Machine:
1, Headstock
1, Footstock

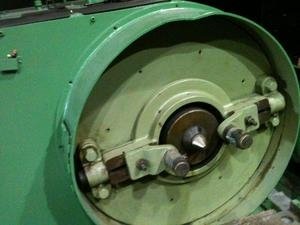

1, Equalizer faceplate drive
1, Grinding Wheel Taper Carriage
2, Journal rest and babbit blocks
2, Steady Rest
2, Wheel Mount
1, Wheel Guard with hinged front steel cover
1, Tailstock mounted Diamond wheel dresser
1, set of new Vee belts for each drive
1, set of splash guards
1, Main electrical cabinet, floor mounted
1, Carriage mounted electrical cabinet
1, Coolant pump and piping
1, Set of Coolant splashguards
Dimensions:
316" x 106" x 78"
Weight:
28,800 Lbs.
