1 (one), Used, 1995 Ecotech 12" x 20" Model M1332B CNC Controlled Plain Cylindrical Grinder - Ser# 172

Allied Machinery Co., Inc.
11430 Kaltz
Warren, MI 48089
586-754-9200
586-754-5131 fax

Offering for sale.....

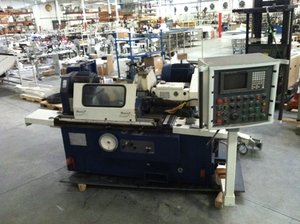

1 (one), 12" x 20" Ecotech M1332B CNC Cylindrical Grinder with GE Fanuc Power Mate CNC Control

New: 1995 Ser# 172

Parts and service for this machine are available from U.S. based distributor

Specs as taken from the operators manual:

Maximum distance between centers: 20"
Maximum diameter to be ground: 12"
Workhead speeds: 23 - 213 RPM
Maximum wheel size OD: 20"
Width of wheel: 4" max.
Mounting hole in wheel: 12" diameter
Wheel head motor: 15 HP
Wheel rotation speed: 1,130 RPM
Maxiumum travel of wheelhead infeed: 9-7/64"
Maximum table traverse: 21-5/8"
Maximum table traverse speed: 157" IPM

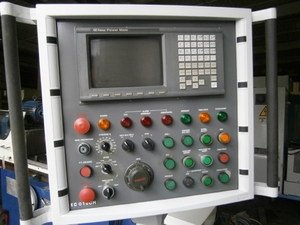

CNC Infeed controlled by GE-Fanuc Power Mate CNC Control - A/C drive servo motor
Table traverse: Hydraulic, infinitely variable
Table swivel: 3 degrees

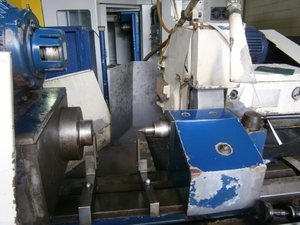

Tailstock
Books, manuals, prints
Electrical panel

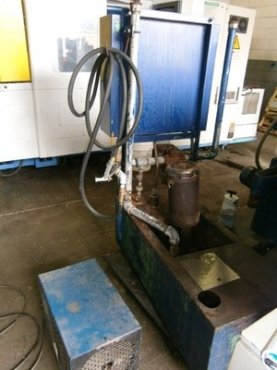

Coolant pump/tank
Machine weight: 8,000 approx.

8,100
