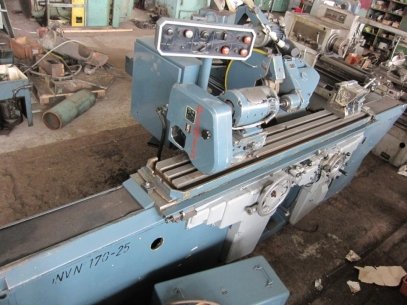

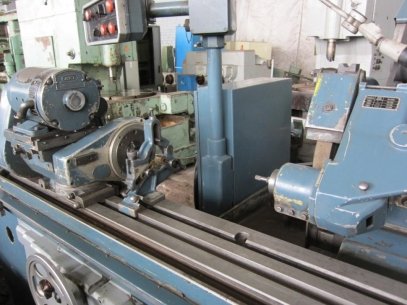

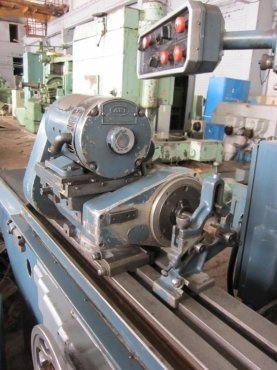

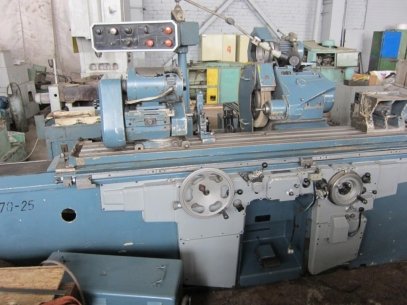

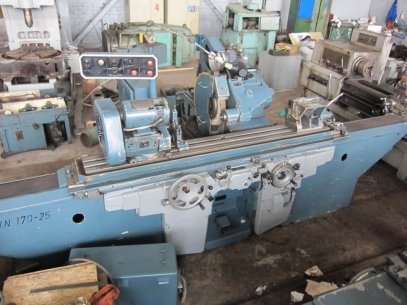

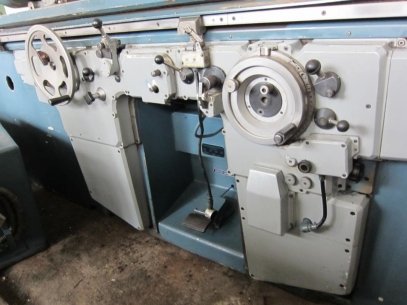

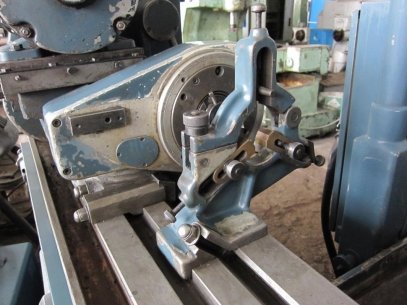

Universal cylindrical grinder JONES SHIPMAN mod. 1053 EF made in England.
Specifications:
Max working diameter: 250 mm
Griding diameter between centers: 1520 mm
Centre height above table: 125 mm
Rpm of work-piece: 40, 60, 90, 140, 210, 320
Table:
-Angle (double): 12 degrees
-Speed range: 75-4500 mm/min
-Min moving with max speed: 1 mm
-Accuracy of reverse: 0,1 mm
Grinding wheel:
-Standard size: 450x50x203 mm
-Max width on a standard machine: 75 mm
-Max wheel diameter for grinding max diameter work-piece: 450 mm
-Range of revolutions per minute (two): 1200 and 1470
