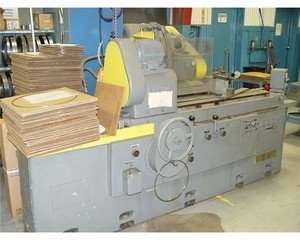

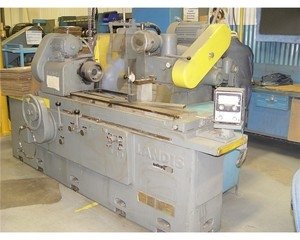

Landis
Model 3R Plain Cylindrical Grinder
12" x 24" x 2" wheel
10 HP
No Tailstock (machine was used for very short parts, tailstock not need)
Specifications:
KELLENBERGER UR 175/1000 CNC UNIVERSAL OD/ID GRINDER
NEW 1998
GENERAL CATALOG SPECS: (to be confirmed by inspection)
13.78" Swing
39 3/8" Center Distance
12 19/32" X-Axis Cross Travel
45 9/32" Z-Axis Table Travel
16" Dia x 2 1/2" Wide Grinding Wheel, Left Hand Side
16" Dia X 2" Wide Grinding Wheel, Right Hand Side
4.4/7.5 KW Spindle Motor
Manual Wheelhead Swivel
Internal Grinding Wheel
Live/Dead Workhead Combination
Tailstock
Coolant System
Movomatic In-Process Gauging
Movomatic Lateral Locating Gauge
Gap Control
Kelco 90 CNC Control
Located in a plant under power
Condition: Excellent
