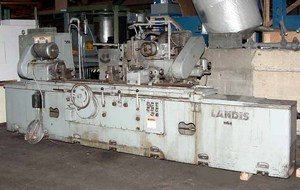

10" x 72" Landis Type 3R Plain Cylindrical Grinder
Specifications:
10" x 72" Landis Type 3R Plain Cylindrical Grinder

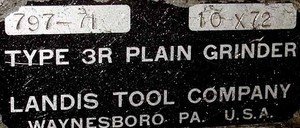

Serial No. 797-71 Age: 1964
Maximum Swing over Table 10"
Distance Between Centers 72"
Table Traverse Speed 2-240 IPM
Traverse per Turn of Handwheel: Slow 0.100"
Traverse per Turn of Handwheel: Fast 1"
Swivel Table Graduated: Degrees Included Angle 23 Deg.
Swivel Table Graduated: Inches Per Foot 4.25"
Headtstock Work Speeds (Infinitely Variable) 72-300 RPM
Headtstock Taper #10 Jarno
Footstock Taper #10 Jarno

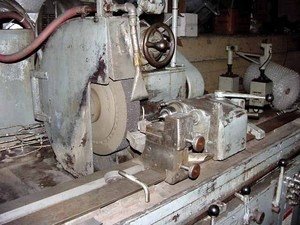

Standard Grinding Wheel Size 30" x 3" x 5"
Grinding Wheel Spindle Speed 1800 RPM
Maximum Hydraulic Infeed 0.090"
Rapid Infeed Stroke 1.5"
Approximate Weight 11,000 lbs
Equipped With:

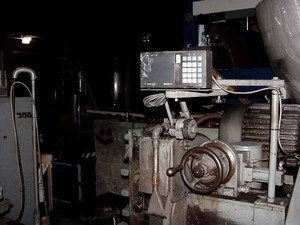

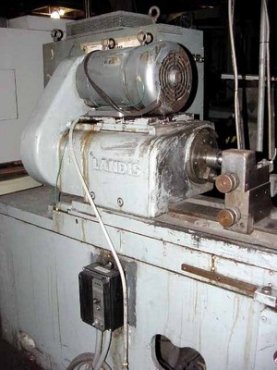

Motor Driven With 10 HP, 3 Phase, 60 Cycle AC Wheelhead Motor. 2 HP Variable Speed DC Headstock Motor with Baldor Controls. ΒΌ HP Spindle Lubrication Motor. 2 HP, 3 Phase, 60 Cycle AC Hydraulic Motor. Variable Speed Combination Live/Dead Spindle Headstock. Hydraulic Pick Feed. Plunge Feed. Sparkout Timer. Power Handwheel Positioning. Rapid Power Wheelhead Positioning. (2) Work Rests. Sony Single Axis Digital Readout. Coolant Pump and Tank with Magnetic Separator.
