Description:

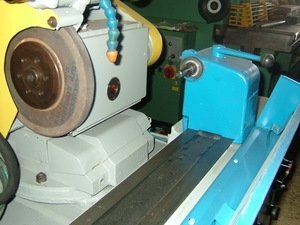

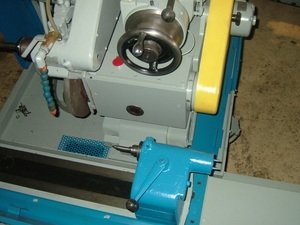

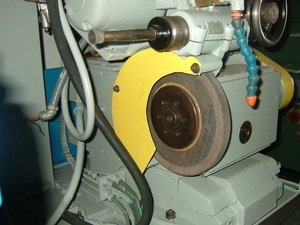

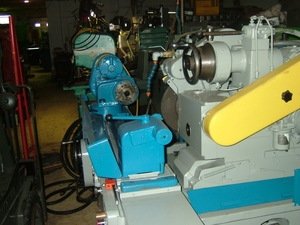

Landis 3 RH Universal Grinder
Type 3 RH, S# 790-39, 14" Swing, 36" Between centers, 13.5" x 1" Grind wheel, Headstock swivels 0 to 30°L & 0 to 95°R, Table swivels 0 to 15°L & 0 to 10°R, Adjustable quick clamp stops on table, "Internal grinding attachment"
6" Depth spindle, 1" Grind wheel, Main head swivels 30° Counter & 60° Clockwise, Upper swivel 180°, Main drive motor 2hp 208-220/440v 3ph, Headstock motor 1/3hp, Internal grind motor 1hp, Hydraulic pump motors 2hp & 1/3hp Coolant pump motor 1/4hp, Operations manual
Specifications:
Landis 3 RH Universal Grinder
Type 3 RH, S# 790-39, 14" Swing, 36" Between centers, 13.5" x 1" Grind wheel, Headstock swivels 0 to 30°L & 0 to 95°R, Table swivels 0 to 15°L & 0 to 10°R, Adjustable quick clamp stops on table," Internal grinding attachment"
6" Depth spindle, 1" Grind wheel, Main head swivels 30° Counter & 60° Clockwise, Upper swivel 180°, Main drive motor 2hp 208-220/440v 3ph, Headstock motor 1/3hp, Internal grind motor 1hp, Hydraulic pump motors 2hp & 1/3hp Coolant pump motor 1/4hp, Operations manual
Dimensions:
8'7"x6'x5'7"
Weight:
10,200lbs
