Description:
14" X 96" Landis 4 R CNC, Sendzimir RG, New GE/Fanuc 160i Control, Rebuilt & Retrofitted 2004.
Specifications:

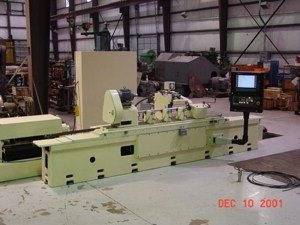

14" x 96" Landis 4R CNC Sendzimir Roll Grinder
S/N: 861-53 Year Built: 1977
Remanufactured 2004
SWING OVER BED: 14.7"
DISTANCE BETWEEN CENTERS: 96"
MAX WEIGHT OF ROLL: 1,500 LBS.
WHEEL SIZE: 18" X 2" X 5"
WHEEL HEAD HORSEPOWER: 7.5HP BALDOR AC VECTOR
WHEEL SPEEDS, VARIABLE: 400-2000 PROGRAMMABLE
WORKHEAD HORSEPOWER: 3HP BALDOR AC VECTOR
WORKHEAD SPEEDS, VARIABLE; 0-300 RPM PROGRAMMABLE
WORKHEAD TAPER: JARNO #14
TABLE TRAVERSE: 0-240 IPM PROGRAMMABLE
Net Weight: 17,000 Lbs.
Dimensions (Approx.): 19' x 10' 3"
EQUIPPED WITH:
*HEIDENHAIN SCALE FEED BACK
*3 WORK REST, STANDARD
*BARNES COOLANT FILTRATION
GE/FANUC DISPLAY STATION 2050 CONSISTING OF A CELERON 466 CPU, 15.1" TFT LCD TOUCH,
XGA SCREEN, 128 MB RAM, 6.4 GB REMOVABLE HARD DRIVE, 1 PCI HALF SIZE, 1 COMBO
PCI/ISA HALF SIZE, 2 ISA HALF SIZE, 1 ISA FULL SIZE EXPANSION SLOT, FLOPPY DRIVE
1.44 MB, 3.5, 24X CD-ROM, WINDOWS NT, SEPARATE TYPE FA FULL KEYBOARD,
POINTING DEVICE-NEMA4, PS-2 COMPATIBLE.
*HIGH SPEED SERIAL BUS INCLUDING TYPE II PC PCB, BASIC OPERATION PACKAGE FUNCTION,
EXTENDED D/L FUNCTION, SOFTWARE OPERATOR'S PANEL OPTION
*PMC-SB5 WITH 8K STEPS
*LEAST INPUT INCREMENT OF 0.00001"
*MANUAL HANDLE INTERRUPTION (ALWAYS ACTIVE)
*MANUAL PULSE GENERATOR ON CORD
*BELL SHAPED ACCEL/DECEL AFTER INTERPOLATION FOR FEED
*PROGRAMMABLE DATA INPUT (G10)
*CUSTOM MACRO
*INTERRUPTION FOR CUSTOM MACRO
*ADDITIONAL CUSTOM MACRO COMMON VARIABLES
*MACRO EXECUTOR
*ANALOG SPINDLE INTERFACE
*SPINDLE ENCODER FOR ANALOG SPINDLE (WORKHEAD)-ENABLES VENTA NIP GROOVING
*640M PART PROGRAM STORAGE
*OPERATORS PANEL CONNECTION UNIT
*LADDER EDIT FOR HSSB FUNCTION
*SPECIAL G CODE INPUT
*10 SLOT HORIZONTAL BASE UNIT
*DIRECTORY DISPLAY OF FLOPPY CASSETTE
*GRAPHIC DISPLAY
*DIGITAL IMPUT MODULES
*DIGITAL OUTPUT MODULES
*I/O LINK CABLE 10M
*2 A22/2000 AC DIGITAL SERVAO MOTOR AND DUAL AMPLIFIER
*ABBOTT CONVERSATIONAL WINDOWS NT DRIVEN CROWNING SOFTWARE WITH THE
FOLLOWING FUNCTIONS:
*COSINE CROWN AND CONCAVES 0-180 DEGREES
*TAPER GRINDING
*AUTOMATIC END DUBBING
*CONTINUOUS INFEED-NOW ADJUSTABLE ON THE FLY
*END INFEED
*AMPERAGE CONTROL OF INFEED
*BED ERROR COMPENSATION
*TAPER COMPENSATION
*ROLL SHAPE COMPENSATION
