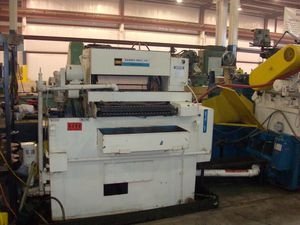

Landis Model 4R 30" X 120" Plain Cylindrical Grinder
Specifications:
Landis Model 4R 30" X 120" Plain Cylindrical Grinder
Swing Over Table: 30"
Distance Between Centers: 120"
Grinding Wheel Size: 30" X 3" X 12"
Grinding Wheel Width: 7"
Grinding Wheel Speeds: 800/964 RPM
Headstock Work Speeds: 54-350 RPM
Work Carriage Traverse: 2 to 144 IPM
Wheel Drive Motor: 15 HP
Machine Weight: 20,500 LBS.
Retrofitted in 2002 with Allen Bradley Ultra Servo and 1336F Dresser Spindle Drive
Equipped with:
30" X 3" X 12" Grinding Wheel Capacity, Combination Live and Dead Spindle Headstock, Barnes Filtration Unit, 2 Axis Sony Digital Readout, Marposs E78 Gauging System, Work Rest, Manual Pulse Generator
