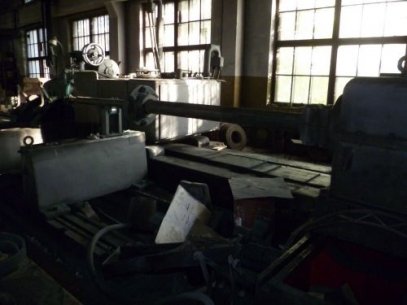

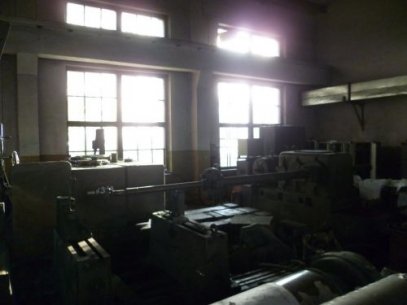

Round grinding machine model XSH-190. The purpose of machine is grinding paper production machines rolls and cylinders.
Possible kinds of grinding: cylindrical surfaces of rolls necks and cylindrical and convex surfaces of rolls.
Specifications:
Max work-piece lenght: 6700 mm
Grinding diameter:
-Min: 250 mm
-Max: 2000 mm
Max work-piece weight: 20000 kg
Grinding lenght:
-Min: 2000 mm
-Max: 5000 mm
Diameter of necks in lunettes: 60-450 mm
-Min: 60 mm
-Max: 450 mm
Distance between axes of grinding wheel and work-piece:
-Min: 285 mm
-Max: 1380 mm
Max traveling of carriage: 6000 mm
Speed range of carriage traveling: 0,05-2,5 m/min
Max traveling of grinding mandrel: 225 mm
Range of grinding wheel revs: 730-1 440 r/min
Range of work-piece revs: 3-40 r/min
Grinding wheel: 450-600
-Min: 450 mm
-MAx: 600 mm
Main drive capacity: 20,5 kW
