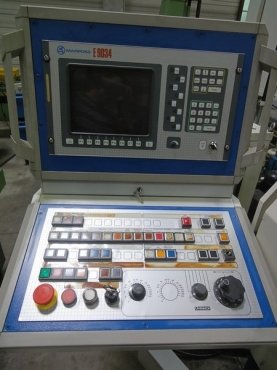

Control Marposs E 9034
HFSpindel GMN HSX 150-18000 U/min
Main spindle speed 0-1050 U/min
pneumatically operated power chuck KLOPFER KMS/3-200
coolant unit Bär + Co.,Typ TFE360R - MA400L - TRK90, year of make 1998

internal diameter 180 mm
grinding depth 160 mm
swing dia. max. 225 mm
rapid traverse max. 15 m/min
x-axis 120 mm
z-axis 320 mm
swival range +/- 45 / 5 °
total power requirement 26 kW
weight of the machine ca. 4 t
dimensions of the machine ca. 6,50 x 2,50 x 2,20 m

6,5 x 2,5 x 2,2 m

4 to
