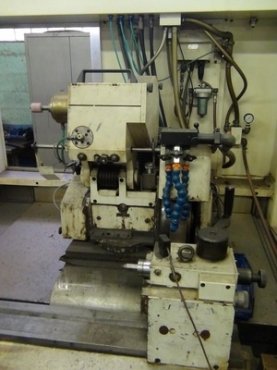

14" x 40" Studer Model S35 ID OD CNC Cylindrical Grinder

14" x 40" Studer Model S35 ID OD CNC Cylindrical Grinder






Swing Over Table: 14"
Distance Between Centers: 40"
Longitudinal Axis Z: 25 19/32"
X Max Travel: 10"
Grinding Wheel Diameter X Width X Bore: 20" x 3 1/4" x 8"
Main Grinding Wheel Drive: 7.5 KW
Grinding Wheel Speeds: 1670 rpm
Work Head Speeds: 15-750 RPM
Max Workpiece Between Centers: 287 LBS

Equipped With:

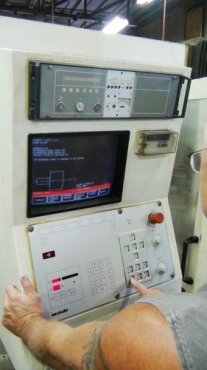

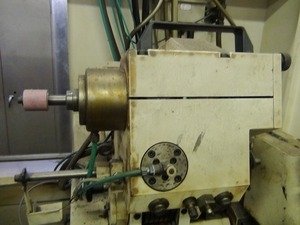

Siemens Sinumerik CNC Control, Cyclotron Filtration System, Internal Grinding Capability
