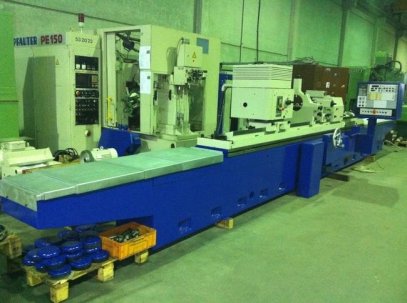

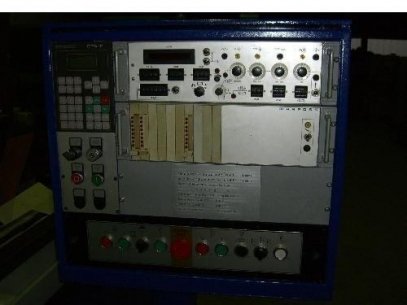

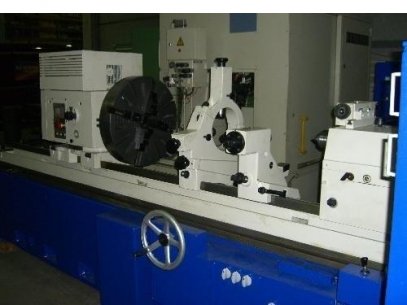

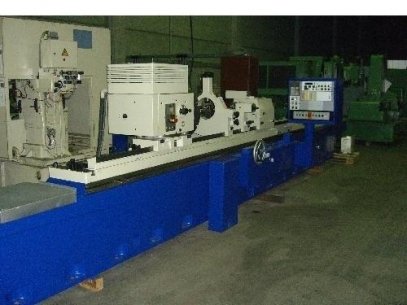

Cylindrical Grinding Machine - Universal Make TOS Type BUC x 63 A 3000 Year 1986/98 of control conventional Storage location stock Langenfeld / Rheinland. Country of origin Czech Technical details grinding diameter 630 mm Grinding length 3000 mm Height 315 mm workpiece weight 2500 kg grinding wheel diameter / bore 750x100x305 mm spindle speed 840/970 rev / min workpiece spindle speed 8-315 rev / min table speed-variable-from 0.01 to 3.6 m / min workhead tilts from 90 taper Morse 6 spindle drive 15 kW electrical. Design - voltage / frequency 380/50 V / Hz machine weight 13.7 t dimensions of 10 x 3.4 x 2 m total power requirement 31 KVA Universal cylindrical grinding with an electrically controlled provision, suitable for grinding of cylindrical and conical outer-u . internal surfaces in the longitudinal and plunge etc. Indramat control CTA 10 with Ecodrive DKC 1 with MCD and Altivar 28 - 1998 Marposs Measurement Control E 6 + E 3 coolant system and hydraulic system 1 box with lots of accessories, a bezel, Auswuchtwaage , etc., a face plate dia. 630 mm, some new wheels, swing-Innenschleifvorrichung and internal grinding spindle Masch.No. 0228615 is currently in overhaul - Picture shows current conversion state
