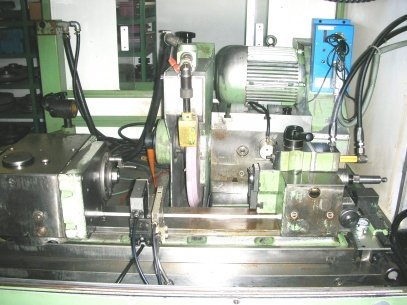

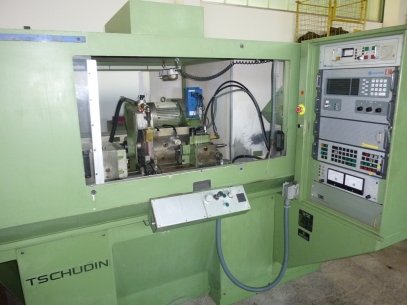

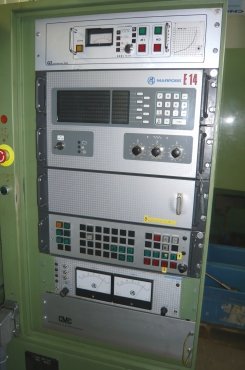

CNC m/c w. Marposs Size Control E14, probe, etc.

Condition: Good to very good. Machine can soon be inspected under power.
Delivery: Ex stock as inspected.
Payment: Net, after conclusion of contract.

Height of centres: 100 mm
Distance between centres: 650 mm
Grinding length, approx.: 620 mm
Grinding wheel, Ø x width: 500 x 80 mm
Grinding spindle speeds, approx.: 1,150 – 1,600 rpm
Grinding slide rapid traverse: 60 mm
Grinding slide swivelling approx.: +/- 3
Cross slide rapid traverse: 3,000 mm
Workhead swivability: 360
Workhead speeds, infinitely variable: 50-500 rpm
Workhead spindle taper: 4 MK
Table speed: 5 m/min
Fine grinding precision: 0.001 – 0.5/8 mm
Table swivable: +/- 9
Spindle drive, approx.: 5.5 kW
Total electrical load: 8.5 kW - 380 V-50 Hz
