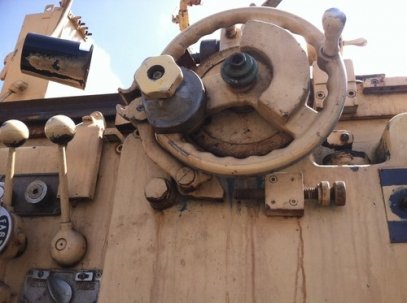

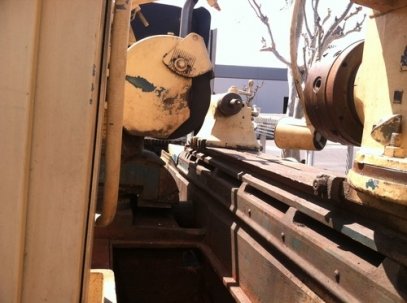

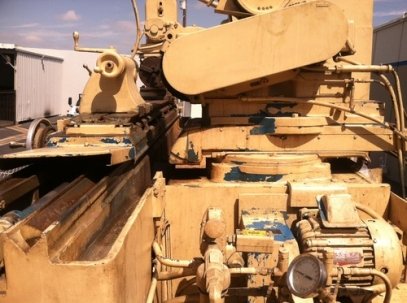

1978 Warner & Swasey Universal Cylindrical Grinder LU-4
Specifications:
STANDARD SPECIFICATIONS
CAPACITIES
Work diameter................................. 14"
Work length................................... 36" - 48"
Work weight................................... 300 lbs.
Wheel head swivel............................. 180"
Wheel head ways swivel........................ 360"
Head stock swivel............................. 360"
WHEEL DIAMETER................................ 14"
OTHER
Work centers.................................. #9 Jarno
Spindle nose, head stock...................... 5" D-1
Wheel motor................................... 5 HP
Internal motor................................ 1 HP
Work motor.................................... 1 HP
EQUIPMENT & FEATURES
Swiveling wheel head.
Swiveling feed ways.
Double ended.................................. 360°
Head stock (with live and dead-center on one end; cam-lock nose on the other).
Infinitely, variable work speeds.
Glide-Ride lever foot stock.
Swivel table.
Weight : 12,000 Lbs.
Dimensions : 120" x 78" x 81"
