Max diameter gears cut: 2000 mm
Max vertical moving of milling support: 900 mm
Max module of processed wheel (not less):
Modul worm mill: 20
Modul disk mill: 25
Modul manual mill: 30

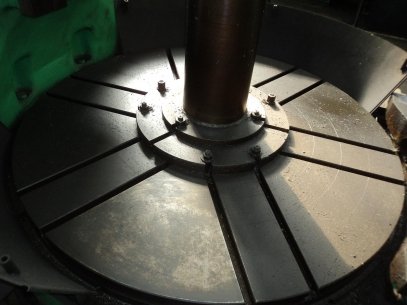

Table diameter: 1800 mm
Max work-piece weight: 20 ton
Max corner: +/- 45 degree
Diameter of installed worm mills: 300...500 mm
Amount of cutting teeths: 10...1800
Spindle speed: 8...125 rpm
Electricity: 50 Hz, 380 V
Main motor power: 20 kW
Overall dimension (LxWxH): 8600x4440x3700 mm . (Height over the floor: 3800 mm)
Machine weight: around 32040 kg

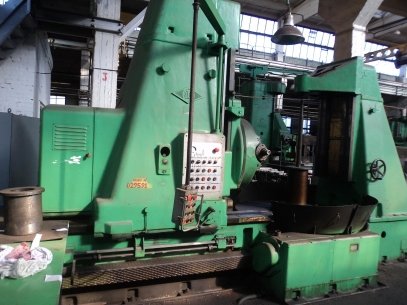

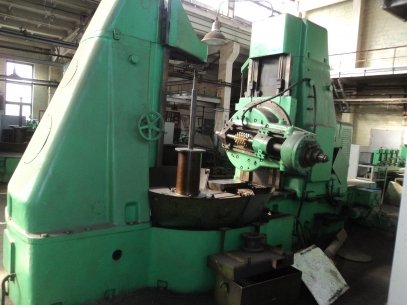

Condition: completed, under power. Video available.
