max. wheel diameter: 80/1500 mm
max. module: 2/25
gear width: 550 mm
number of teeth: 12/432
table diameter: 1000 mm
stroke length max.: 550 mm
no. of ram strokes: 20-200 strokes/min.
shaving cutter size: 400 mm
max.helical angle: 35 °
grinding wheel size: 400 x 45 mm
total power requirement: 75 kW
dimension of the machine l/w/h: 6,5 x 5,5 x 23,4 m
weight approx.: 27000 kg

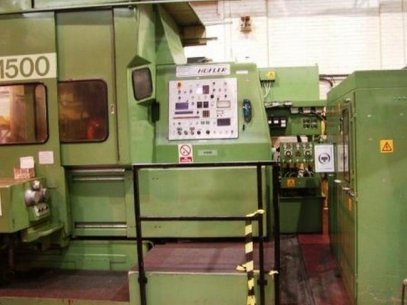

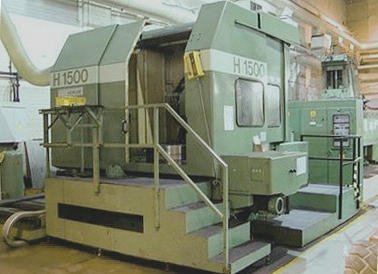

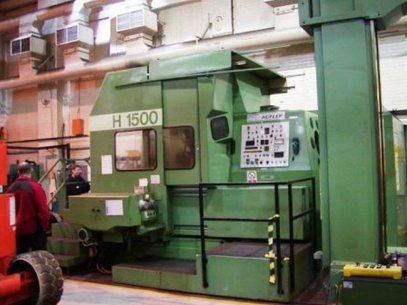

Description: with counter bearing, coolant attachment, change gears, Hydrostatic guides in grinding slide, table and in all other guideways. Completely covered working area with sliding doors. Automatic grinding process for various cycles, with settings for roughing, finishing, fine finishing and automatic dressing cycle after preset number of teeth. Profile correction is possible via appropriate dressing, as well as additional movement of grinding slide (depth and width crowning). Large coolant device with band filter and oil mist exhaust. Separate switch cabinet.Separate hydraulic unit. Separate oil cooling unit.
