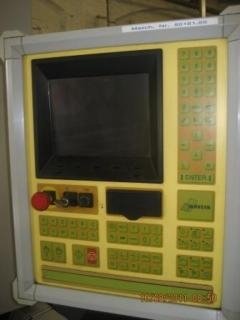

control HOEFLER CNC

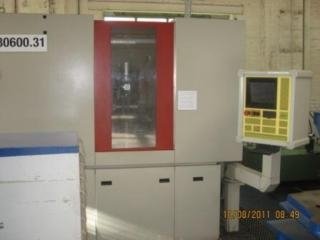

4 – axis numeric controlled Gear-Grinding Machine for cylindrical, straight-geared evolvent- and special tooth systems.
The grinding wheel will be profiled with a integrated cnc dresser.
Processing accuracy (under reserve) quality 4 under regular production condition.
max. tip diameter 400 mm
min. root diameter 10 mm
max. tooth width 200 mm
max. working stroke 210 mm
modul 0,5 – 11
number of teeth free selectable
number of controlled axes 4 (machine) + 2 (dresser)
max. table load 100 kgs
grinding wheel diameter 400 mm
max. grinding wheel width 45 mm
power rating grinding wheel 15 kW
max. cutting speed 45 m/sec
max. grinding stroke. 210 mm
workpiece carriage lifting speed 6.000 mm/min
