Excellent condition, still under power at the plant. DIN Quality 5-6.
Specifications:

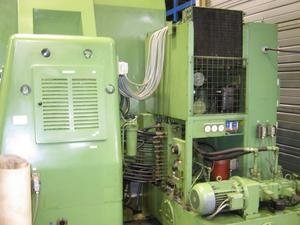

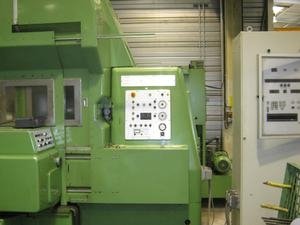

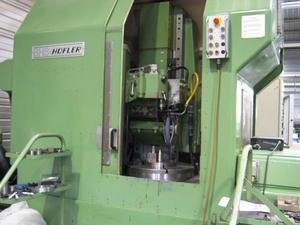

GEAR GRINDING MACHINE
Maker : Hoefler
Type : H 630
New in : 1987
Specifications:
Max. work piece dia. 630 mm
Max. module 14
Min. module 1,5
Ram Stroke 225 mm
Max. workpiece length 1000 mm
Number of teeth 12-124
Max. helix angle 45 °
Table load capacity 85 kg
Electrics 380/60 V/Hz
Machine dimensions 4.2 x 3.8 x 2.3 m
Weight of the machine 8 Ton
Accessories:
- Counter steady
- Dressing Attachment
- Crowning attachment
- Top and root releaf
- Set of change gears
- Flanges with grinding wheels
