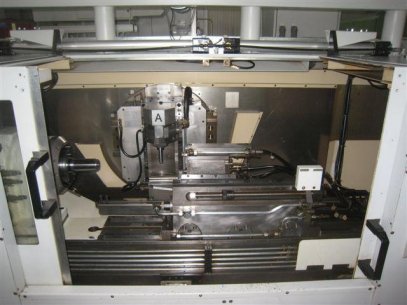

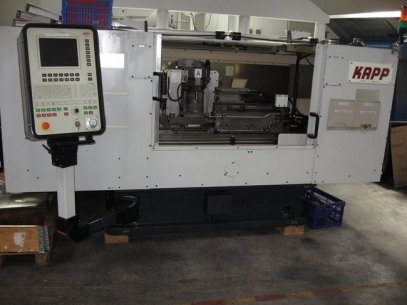

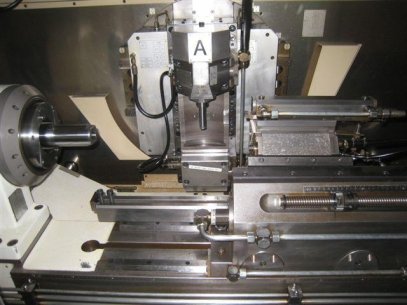

Make KAPP
Model VAS 55
Year of make 1999
Serial no. 077.0675
CNC OPTRONIC D 200
Workpiece diameter = swing over bed max. 500 mm
Workpiece length = center distance max. 1000 mm
Number of teeth 2-999
Travels:
X axis: longitudinal 700 mm
Y axis: crosss 290 mm
Z axis: grinding spindle axis 160 mm
A axis: workpiece rotation 360 °
B axis: grinding spindle head +/- 90°
Incremental resolution:
X / Y axis 0,0001 mm
Z axis (ROD) 0,001 mm
A axis (ROD) 0,0002 °
B axxis (ROD) 0,001 °
Equipped with:

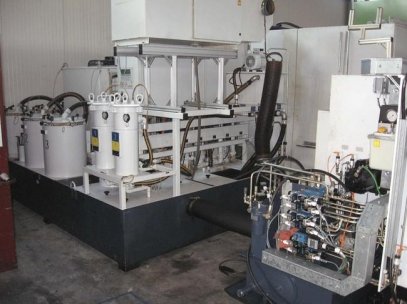

Cooling liquid and filtration unit HOFFMANN: capacity approx. 2000 l
Machine dimensions:
Space required 5,80 x 3,20 x 2,65 m
Weight 10.500 kgs
