Max tip circle diameter: 2500 mm
Min root circle diameter: 250 mm
Number of teeth: 16 - 600
Min module: 4
Max module: 25
Max helix angle: 35
Max round table load: 30 ton
Bed slide way: 710 mm
Axis slide way (stroke): 760 mm

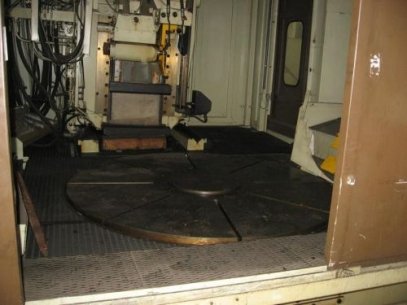

Round table diameter: 2000 mm
Table bore diameter: 450 mm
Depth of table bore: 2000 mm
Grinding worm diameter: 300 - 400 mm
Grinding worm width: 127 mm
Number of turning of grinding worm spindle per minute: 2150
Total power: 45 KW
