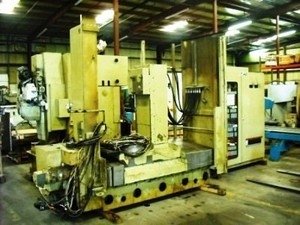

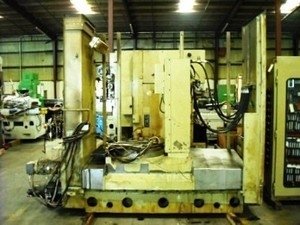

Niles Model ZSTZ-06 Gear Grinder, #1600

#1600 Niles Model ZSTZ-06 Gear Grinder, Max Angle 45 Deg, Max Gear Dia. 31.49”, 11.02” Stroke

Sn:
Model: 39
Mfg:

SPECIFICATIONS:

Maximum Gear Diameter: 31.49"
* Minimum Gear Diameter: 1.96"
* Module Range: 2-14
* Maximum Helix Angle: 45 degrees
* Maximum Gear Width for Straight Gears: 10.43"
* Length of Stroke (approx): 11.02"
* Adjustment of Stroke Position: 7.87"
* Maximum Mounting length in Counter Bracket: 27.56"
* Maximum Weight of Workpiece (approx): 1762 lbs
* Min/Max Number of Teeth: 5 / 315
* Grinding Wheel Diameter x Width: 13.78 x 1.26
* Feed Range (roughing/finishing): 3.149/min
* Table Bore: 5"
* Table (0): 24.8"
* Number of Strokes: 3.15/13.78/mn
* Grinding Wheel Speed (approx): 1,690rpm
* Depth of Table Bore: 10.63"
* Total Electrical Load (approx): 25Kva/380v
* Approximate Weight: 31,284 lbs


EQUIPPED WITH:


Machine Condition: Very Good
Machine Location:
Machine Price:

31,284
