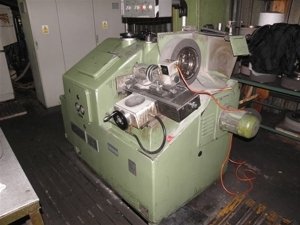

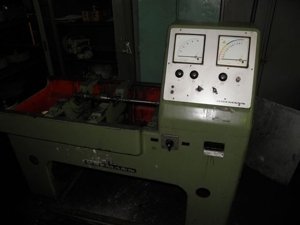

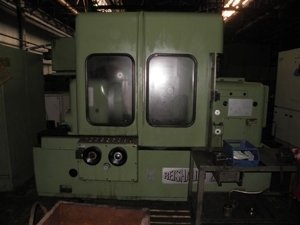

A well maintained machine with AM Dressing Machine, Double Disc Dresser, Hoffmann Balancing Machine and lot of other accessories, such as wheels and flanges
Specifications:
max. workpiece dia. 800 mm
max. stroke 300 mm
no. of teeth range 16 - 240
module range 1,5 - 8
helix angle +/- 30 °
pressure angle range 14 – 30 °
max. workpiece weight 300 kg
max. grinding wheel dia. 400 mm
min. grinding wheel dia. 280 mm
grinding heel width 84/104 mm
grinding wheel speed:
- grinding 1650 rpm
- profiling 90 rpm
workstück infeed, stepless 10-300 mm/min
tangential movement of workpiece 70 mm
electrics 380/50 V/Hz
weight of the m/c approx. 7.5 to
