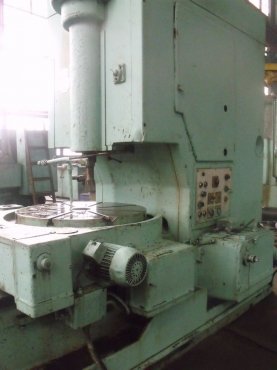

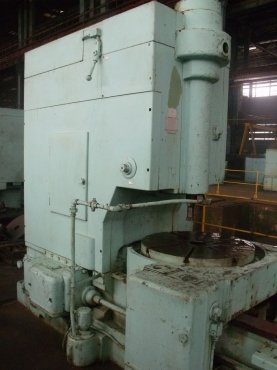

The machine 5B150 is in good condition and is complete and functional.

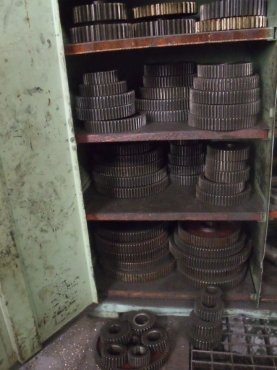

The machine also has: technical book and set 51 pieces changing gears and 2 pieces chuck (jaw): (one pcs Ø500 and one pcs Ø250)
The machine worked very little in the last 10 years.
Specifications:
GEAR SHAPER MACHINE TYPE 5B150
Diameter: 800 mm
Max module: 12, max
Max gear dia: 800mm
Max module of gears: 12
Max gear width: 160 mm
Table dia: 800 mm
Distance between table surface and spindle nose: 155 to 355 mm
Max spindle stroke: 200 mm
Distance between table axis and spindle axis: 0 to 700 mm
Spindle double strokes range: 33-212/min
Machine weight: 10 200 kg
Accesories:
- set pieces changing gears and 2 pieces chuck (jaw): (one pcs Ø500 and one pcs Ø250)
