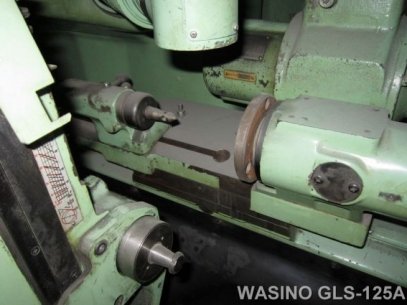

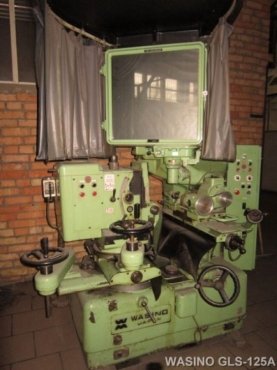

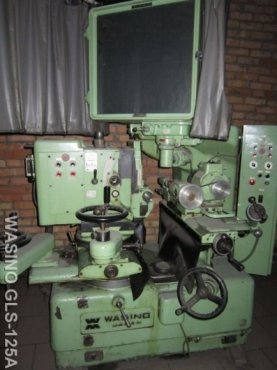

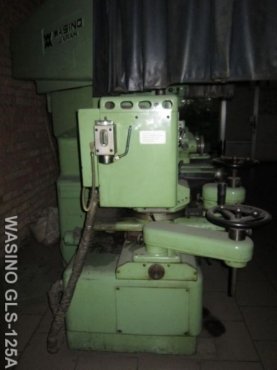

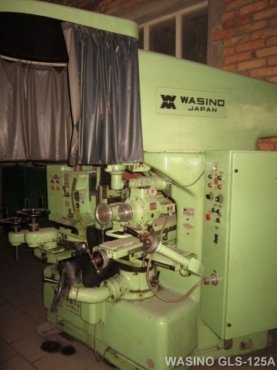

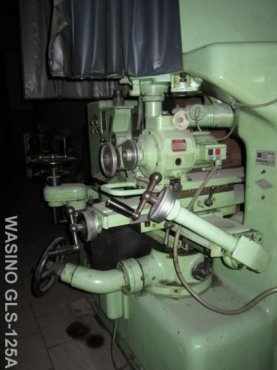

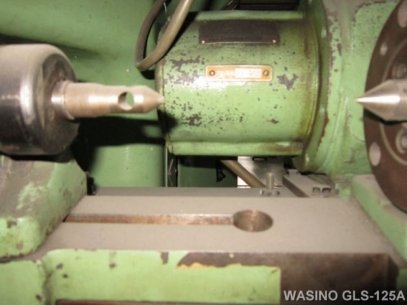

Optical profile grinder WASINO GLS-125A made in 1982, Japan.
Specifications:
Grinding capacity: 250x80x125 mm
Screen size: 535x515 mm
Max grinding wheel diameter: 150 mm
Grinding strokes per 1min: 40-80
Grinding stroke, adjustable, infinitely variable: 0 – 182 mm

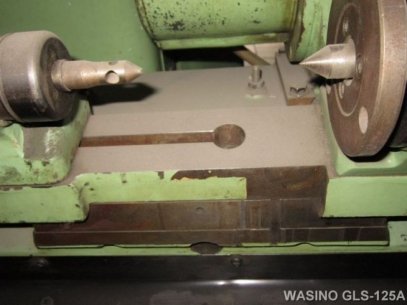

Table area: 280x200 mm
Travel of table:
-Longitudinal: 250 mm
-Vertical: 140 mm
-Cross: 80 mm
WHEELHEAD
Spindle speeds: 3600 rpm
Wheel size: Up to 150x6x32 mm
Relief angle:
-For radial grinding: 0 - 35 degrees
-For lateral grinding: +/- 10 degrees
Swiveling angle: +/- 45 degrees
Longitudinal travel: 200 mm
Cross travel: 160 mm
Total power capacity: 2.5 kW
