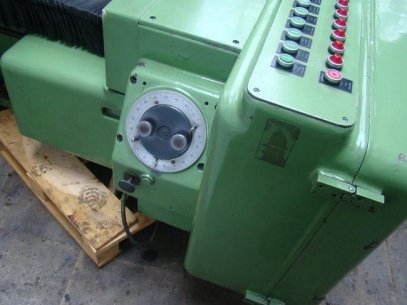

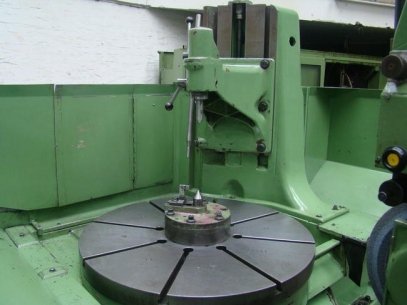

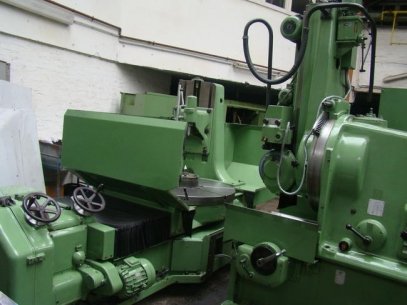

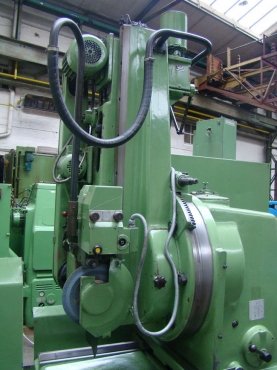

Machine: gear grinding machine
Manufacturer: WMW Niles
Type: ZSTZ 1250 x 18

max. Wheel diameter: 1250 mm

Table diameter: 1100 mm

Gear width: 300 mm

max. Module: 18

min. Module: 3

max.helical: 45 °

Max stroke length. 320 mm

Number of teeth: 6-140

Table load: 3000 kgf

Grinding wheel diameter min / max. 250 - 350 mm

Grinding wheel speeds: 1600 rpm /

Number of strokes per division: 6

Electrics - voltage / frequency: 380/50 V / Hz

Dimensions of machine LxWxH approximately 5.0 x 4.0 x 2.6 m

Total power requirement: 12 kW

Weight of machine 12000 kg

Accessories: change gears, manual, grinding wheels etc

-
