Processing range:
Grindable work O.D. (max):φ6-100 mm
Grindable work height:10-125mm
Suitable for processing parts with high precision demands.
CPK≥1.33
Roundness≤ 2 μm
Cylindricity ≤ 2 μm
Dimension precision≤ 2 μm
Surface roughness≤ Ra0.2 μm

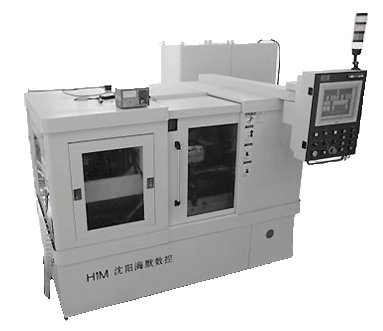

Item Specification
Grinding method CNC oscillation grinding

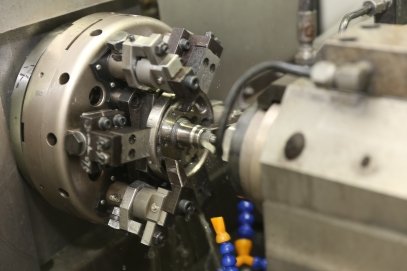

Work support method Chuck
Machining surface Through hole, blind hole, stepped hole, taper hole, end face,ball surface,taper surface
Dressing method Diamond dressing roller
Grindable workpiece I.D. φ6-100mm
Grindable workpiece width 10～125mm
Chuckable workpiece O.D φ8～200mm
Height of workpiece center 1113mm
Workpiece spindle speed 220～2000r/min
Work spindle box swivel angel ±25°
Table travel(X axis) 120mm
Table speed(X axis) 0.4～333,330 φμm/s
Table travel(Z axis) 400mm
Table speed(Z axis) 0.2～333,330μm/s
Roundness ≤2μm
Cylindricity ≤2μm
Dimensional precision ≤2μm
Roughness ≤Ra0.2μm
Net weight 6.5T
Floor space(L×W×H) 3680×2730×2410

3680×2730×2410

6.5T
