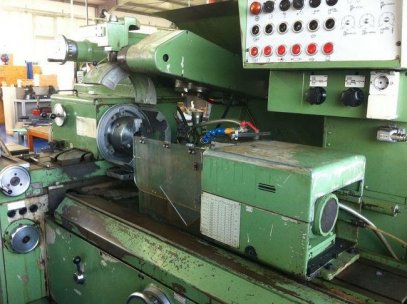

- Internal and Face Grinding Machine - Year: 1968 - Manufacturer: Reinecker - Type: ISP-10 - Min diameter and Max: 6 - 100 mm - Maximum grinding depth: 150 mm - Height from ground: 1120 mm - Height of from the slip-slide: 255 mm - Capacity of hoods: 220 - 350 mm - Smallest and largest Schleiftischhub: 2 - 450 mm - swivel range of workhead: 30 - interior cone of the workpiece spindle: Morse 5 - Outside taper of work spindle: DIN 55021 size 5 - Bore grinding spindle bearing of : 90 mm - Speed range of spindle: 9000-70000 r / min - Tischeilganggeschwindigkeit: 14 m / min - table feed speed infinitely adjustable: 0.6 m / min - workpiece speed: 225, 450, 625, 1250 U / min - space: approximately 270x230x215 cm
