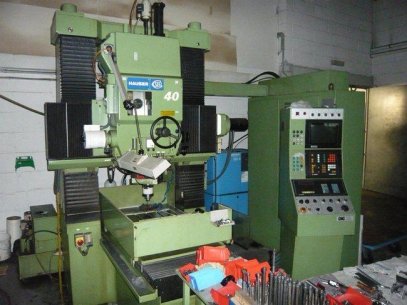

Jig Grinding Hauser Type S 40 Specifications with CNC control 314 Sip data: x-travel 650 mm y-travel 450 mm workpiece height mm feed range 0 - 1500 mm / min table size 770 x 630 mm table load 500 kg Stand width 750 mm taper - max. planetary motion to grind 16 5-250 rev / min electrical design - voltage / frequency 440/60 V / Hz vertical adjustment of 500 mm total power requirement Qürbalkens 8 kW Machine weight 4,5 t dimensions of approximately 4 x 3.6 x 3.2 m Accessories: Coolant - Filtration System
