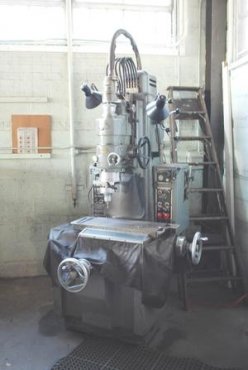

Table Size: 11" X 24"
Spindle To Column Ways: 10"
Spindle To Column Beneath Ways: 13-1/2"
Inf Variable Spindle Speeds: 40 TO 250 RPM
Inf Variable Spindle Speeds Feeds: 2 TO 120 SPM
Gginding Wheels Capacities: 3/16" TO 5"
Diamond Mandrels: 1/64" TO 3/16"
Main Spindle Slide Adj: 1-1/2 Deg.
Radial Off-Set Of Grinding Spindle:
(A) From Center To 1-1/8" Off Center By Rough Adj.
(B) When Running .0001" Adj. For Distance Of .100" - 1-1/8"
Equipped With:
(2) High Speed Heads (RPM's to be advised)

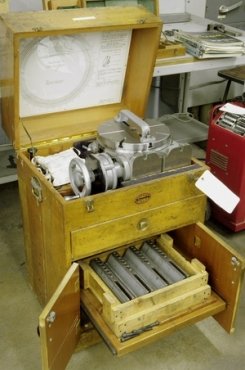

Moore Mahogany Tooling Cabinet
Hadened, Ground And Lapped Steel Ways
Hardened, Ground & Lapped Lead Screws
