11" X 24" Moore No. 3 Jig Grinder, 40,000 RPM Spindle, Geometry Report.
Specifications:
Equipment Trading Co., Inc.
48921 Wixom Tech Drive, Wixom, Michigan 48393
Ph: 248-926-0088 Fax: 248-926-1003
Email: sales@equipmenttrading.com
Web site: www.equipmenttrading.com
STOCK NO. ET-4804

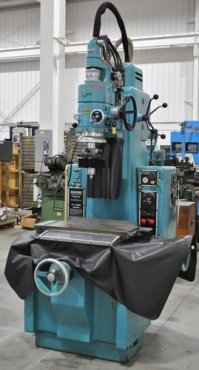

(1) USED MOORE #3 JIG GRINDER
Serial No. G1433 New: 1970
Table size: 11” X 24”
Table travels:
Longitudinal – 19”
Cross – 11”
Table to wheel collect: 18” max., 2” min.
Spindle column ways: 10”
Spindle speeds from 40 to 250 RPM, infinite
Spindle feeds from 4 to 240 SPM
Spindle travel: 3 5/8”
Machine equipped with:
Moore 40,000 RPM spindle or Moore 60,000 RPM spindle
Electrical motor and controls
Dimensions: FB X RL – 80” X 65”
Height: 102”
Est. weight: 3800#
