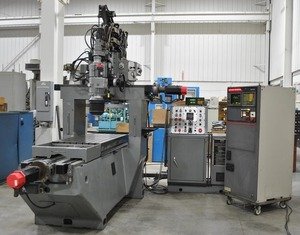

(1) RETROFITTED MOORE MODEL G-48 BRIDGE TYPE 3 AXIS CNC JIG
GRINDER
Serial Number: LG-113 Retrofitted in 1992 by Swisstronic
Table size: 24” X 48”
Longitudinal travel: 48”
Cross travel (spindle carriage): 24”
Traverse speeds: 0 to 16 IPM
Distance between columns: 32”
Distance from table to bridge: 20.5”
Spindle housing travel: 13”
Spindle quill travel: 5.125”
Main spindle speeds from 25 to 225 RPM, variable
Spindle feeds from 2 to 120 Cycles/min., variable
Angular adjustment of spindle: up to 1 ½ degrees
Equipped with:
GE-Fanuc 15-M 3 Axis CNC control
Moore programmable outfeed on “U” Axis
Moore 40,000 RPM spindle or Moore 60,000 RPM spindle
10” Diameter plain CNC rotary table
(2) Axis FUTABA model CMJ DRO on X & Y, 0.00002” resolutioin
Floor space required, including panels: 10’ X 12’
Height: 110”
Est. weight: 12,000#
