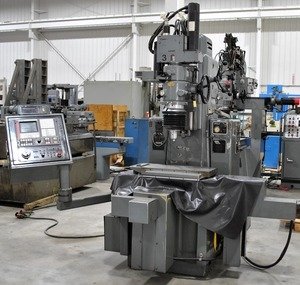

Machine serial number: G469
Nasa retrofit control serial number: 0112
Table size: 11” X 24”
Table travels:
Longitudinal – 17.5”
Cross – 10.5”
Table to wheel collet: 18” max., 2” min.
Spindle to column ways: 10”
Spindle travel (U Axis): 3 5/8”
Machine equipped with:
Fagor 8030 4 Axis (X,Y,C and U) CNC controls, Nasa Model AGS-3
Moore 40,000 or 60,000 RPM spindle
Electric motors and control
Dimensions: FB X RL – 90” X 85”
Height: 102”
Est. weight: 4900#
