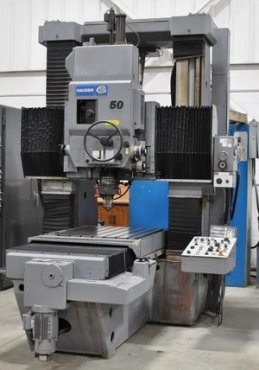

(1) USED SIP-HAUSER S-50 DR BRIDGE TYPE JIG GRINDER
Serial Number: 0105 New: 1981
Table size: 33.8” X 40”
Table travel (X axis): 35.4”
Distance between columns: 37.4”
Vertical rail travel: 31.4”
Distance from spindle to table: 29.5” max.
Head cross travel (Y axis): 23.6”
X & Y axis feed rates from .6 to 295 IPM
Stroke of grinding quill (Z axis): 7”
Planetary speeds from 5 to 250 RPM
Max. angle of taper grinding: 16 degrees
Equipped with:
Sony Model LH51 2 Axis DRO
One Hauser grinding head mounted on machine
Coolant system
Dimensions: FB X RL 118” X 83”
Height: 113”
Est. weight: 15,000#
