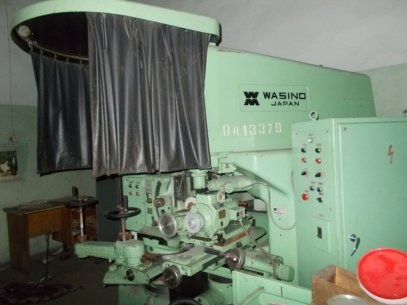

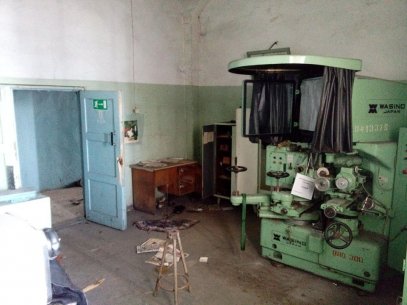

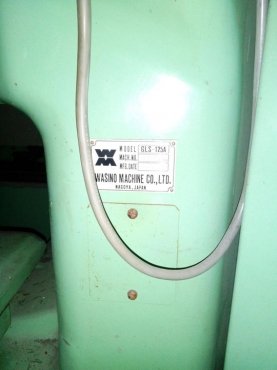

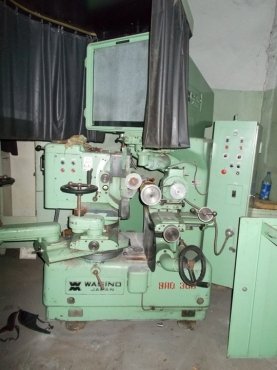

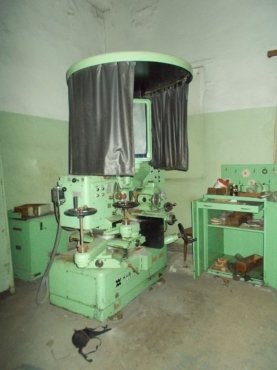

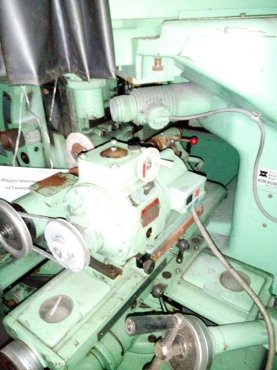

Optical profile grinder WASINO GLS-125A made in Japan.
Specifications:
Grinding capacity: 250x80x125 mm
Screen size: 535x515 mm
Max. grinding wheel diameter: 150 mm
Grinding strokes per 1 min: 40-80
Grinding stroke, adjustable, infinitely variable: 0–182 mm
Table area: 280x200 mm
Travel of table:
-Longitudinal: 250 mm
-Vertical: 140 mm
-Cross: 80 mm

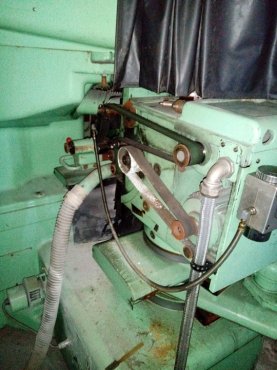

WHEELHEAD
Spindle speeds: 3600 rpm
Wheel size: up to 150x6x32 mm
Relief angle:
-For radial grinding: 0-35 degrees
-For lateral grinding: +/- 10 degrees
Swiveling angle: +/- 45 degrees
Longitudinal travel: 200 mm
Cross travel: 160 mm
Total power capacity: 2,5 kW
