SPECIFICATIONS:
Abrasive Disc Diameter: 30”
Useable Abrasive Thickness: 3”
Maximum Opening Between Steel Wheels: 15”
Stepper Incremental Feed To: .0001”
Face-Cut Travel: Infinite
Work Capacity with 3” Useable Abrasive: 6” Wide
Approximate Weight: 23,000 lbs
Electrical System:

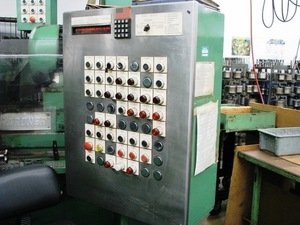

40 HP Spindle Motors: 3/60 – 230/460; 2 Machine Mounted 460 Volt Main Electrical Cabinets with Standard Starters and Disconnect; Lektrifeed I CNC Control.
EQUIPPED WITH:
One Set Wheel Mounts GM Drilling; Electric Wheel Dresser; Auto Lube; Coolant Trough Piping; Hydraulic Gun Feed Fixture; Cylindrical Side Guides; Coolant Sump Tank and Return Pump to Send Coolant and Swarf to a Central Filter System. No filter or Central System is Included in this Quote. **Note** The Lektrifeed does not work.
Machine Condition: Good
Machine Location: Waterbury, CT
