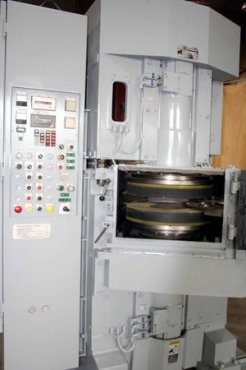

Koyo Model KVD-580C CNC Vertical Double Disc Grinder
Specifications:
Koyo Model KVD-580C CNC Vertical Double Disc Grinder
S/N: 9302VD5-48 New: 1993
EQUIPPED WITH:
Allen Bradley PLC Controls. Marposs E3U Automatic Gauging System. Controls for variable grinding speeds for the top and bottom grinding wheels. Variable speed carrier. Fine Compensation Intervals To Both Wheels. Dresser Arm Advance And Return Speeds. Dress Time And Compensation Amount To Both The Top And Bottom Grinding Wheels. Rotary Carrier With Work Discharge Port.
SPECIFICATIONS:
Grinding Capacity Outer Diameter (Maximum) 6"
Grinding Capacity Width (Maximum) 2"
Grinding Wheel OD x Thickness 23" x 3"
Wheel Speed 900 RPM
Maximum Distance between Wheels 3"
Grinding Wheel Drive (Upper and Lower) 25 HP
Wheel Feed Drive 100W-DC Servo Motor
Carrier Drive 1 HP
Carrier Disc Diameter 28"
Carrier Rotation Speed 1-5 RPM
Approximate Weight 19,800 lbs
