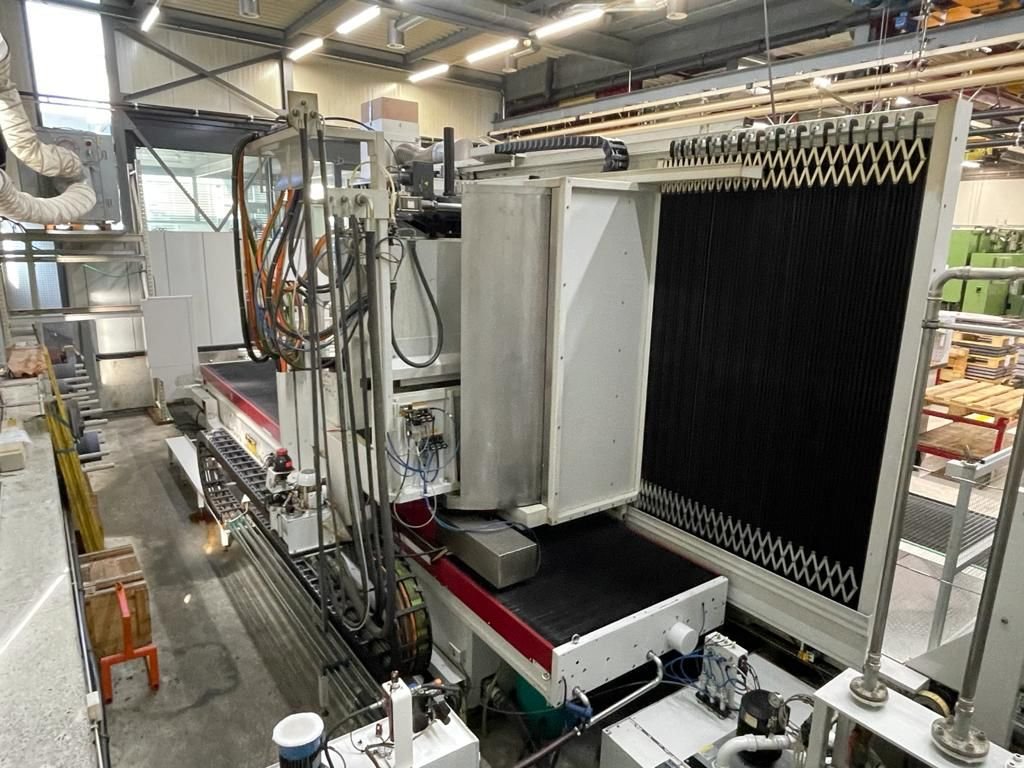

MAEGERLE MÄGERLE MAEGERLE MGC-L 560 65 45 CNC Surface and profile grinding machine 5600 x 650 x 750 mm 6806 Mach4metal
CNC gear rack grinding machine
Automatic grinding head
B-Axis Grinding head ca 20 gr swivel
ARO – KKS coolant tank 8000 L ( size 4400 x 1900 x 2200)
Pendel opperation ( double table)
Dresser automatic
Table dresser
X – Travel: 5.500mm
Y – Travel: 650mm
Z – Travel: 750mm
Table Length: 5.500mm
Table Width: 750mm
Feed rate X-Axis: 20.000mm/min.
Feed rate Z-Axis: 20.000mm/min.
Grinding stone dimensions:600 x 300 mm
Power: 115kW
Speeds: 8000Rpm
Coolant system: Yes
Feed rate Y-Axis: 20.000mm/min.
Length: 10.700 mm
Width: 4.700 mm
Height: 3.800 mm
Weight: 42.000 kg
Specifications:
MAEGERLE MÄGERLE MAEGERLE MGC-L 560 65 45 CNC Surface and profile grinding machine 5600 x 650 x 750 mm 6806 Mach4metal
CNC gear rack grinding machine
Automatic grinding head
B-Axis Grinding head ca 20 gr swivel
ARO – KKS coolant tank 8000 L ( size 4400 x 1900 x 2200)
Pendel opperation ( double table)
Dresser automatic
Table dresser
X – Travel: 5.500mm
Y – Travel: 650mm
Z – Travel: 750mm
Table Length: 5.500mm
Table Width: 750mm
Feed rate X-Axis: 20.000mm/min.
Feed rate Z-Axis: 20.000mm/min.
Grinding stone dimensions:600 x 300 mm
Power: 115kW
Speeds: 8000Rpm
Coolant system: Yes
Feed rate Y-Axis: 20.000mm/min.
Length: 10.700 mm
Width: 4.700 mm
Height: 3.800 mm
Weight: 42.000 kg
