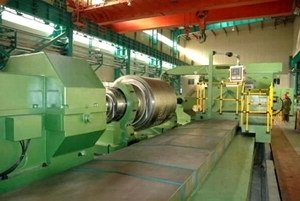

Type: 3000mmX8000mX300T
Distance between Centers (L): more than 8m (1m increment)
Roll Measuring Range Dia : 1400-3000mm
Max. Workpiece Weight: 300T
Grinding stock Travel: 900mm
Max. Curve Height: ±2mm (radius)
Grinding Wheel Specification: 1066×150×305mm
Grinding Wheel Linear Speed: less than 45m/s
Headstock Speed Range: 2-20rpm
Carriage Travel Speed: less than 12000mm/min
Grinding Wheel Motor Power: 179kW
Grinding Max: 170kg/h
Curve Grinding Accuracy: 0.002mm
Machine Numerical Control System: SIEMENS 840D
AC Servo Axis Number: X, U, Z, X1, U1, V
AC Spindle Number: Grinding Wheel, Headstock
HMI Weight: 270T(8m)
Machine Profile Size: 2000×800×500cm

Type: 3000mmX8000mX300T
Distance between Centers (L): more than 8m (1m increment)
Roll Measuring Range Dia : 1400-3000mm
Max. Workpiece Weight: 300T
Grinding stock Travel: 900mm
Max. Curve Height: ±2mm (radius)
Grinding Wheel Specification: 1066×150×305mm
Grinding Wheel Linear Speed: less than 45m/s
Headstock Speed Range: 2-20rpm
Carriage Travel Speed: less than 12000mm/min
Grinding Wheel Motor Power: 179kW
Grinding Max: 170kg/h
Curve Grinding Accuracy: 0.002mm
Machine Numerical Control System: SIEMENS 840D
AC Servo Axis Number: X, U, Z, X1, U1, V
AC Spindle Number: Grinding Wheel, Headstock
HMI Weight: 270T(8m)
Machine Profile Size: 2000×800×500cm

8000x20000x5000

270000
