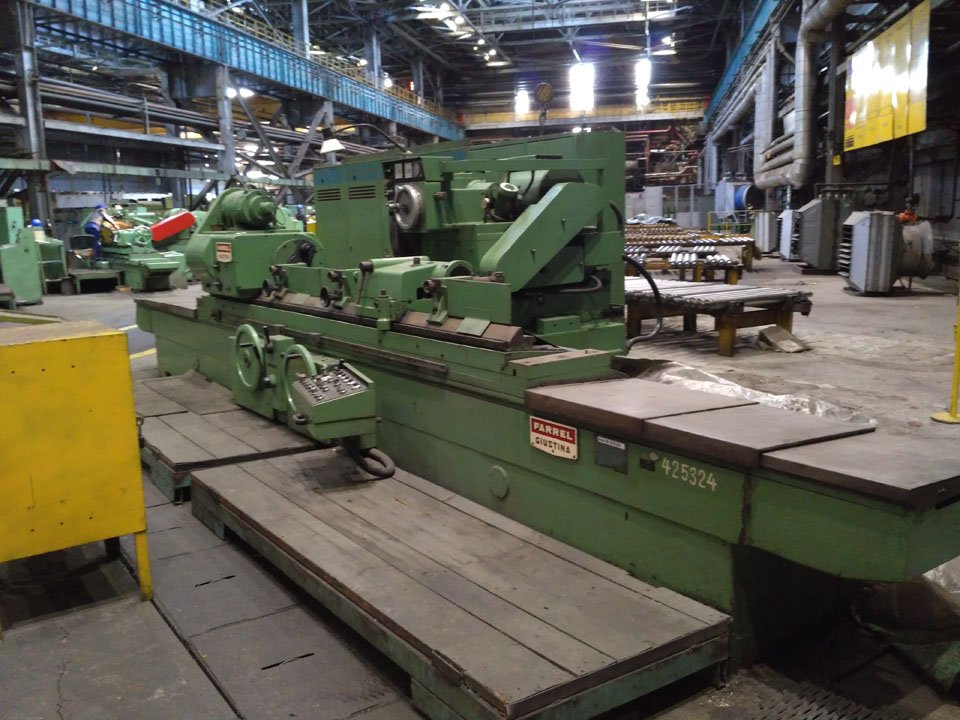

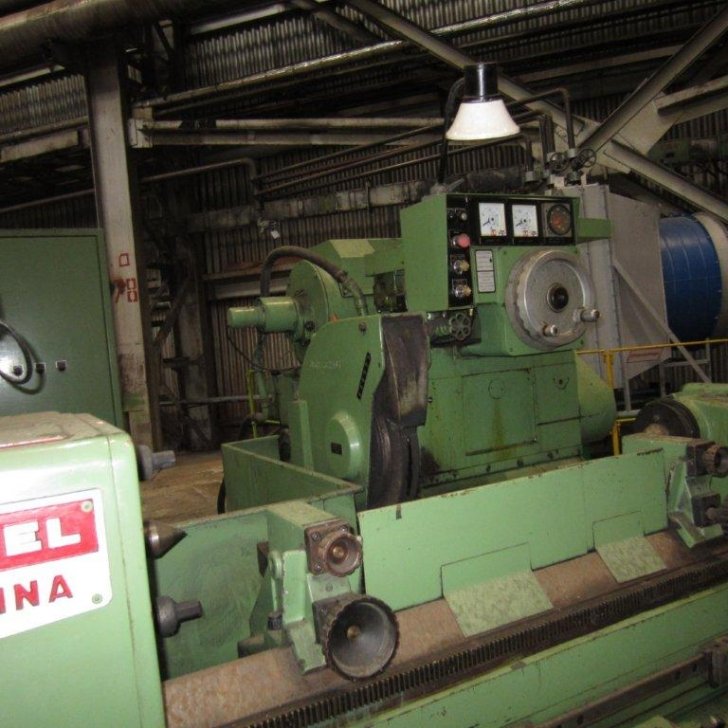

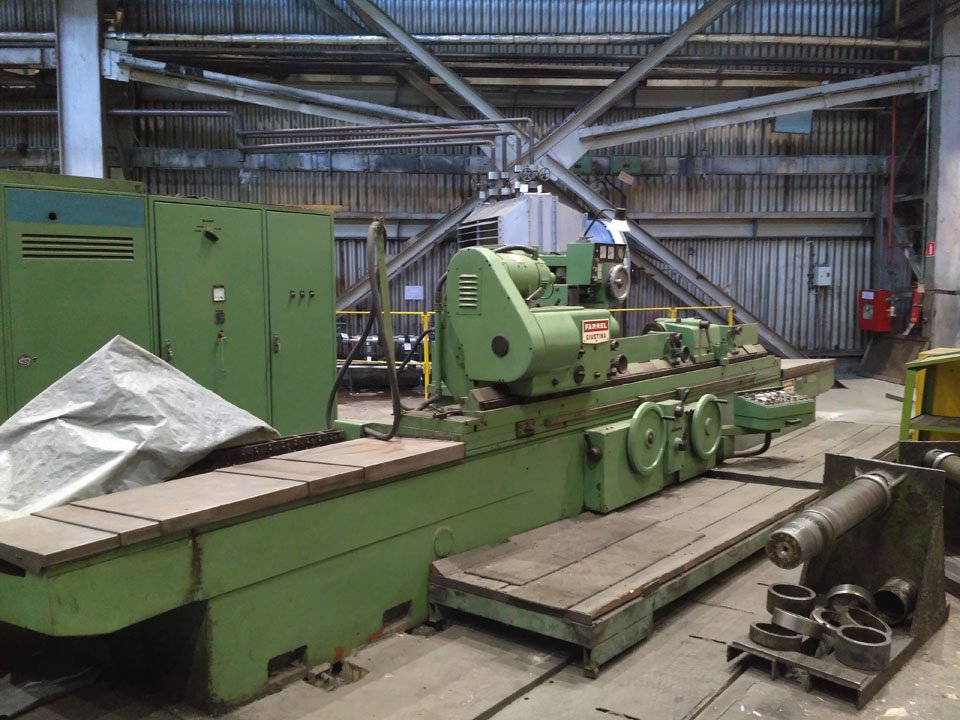

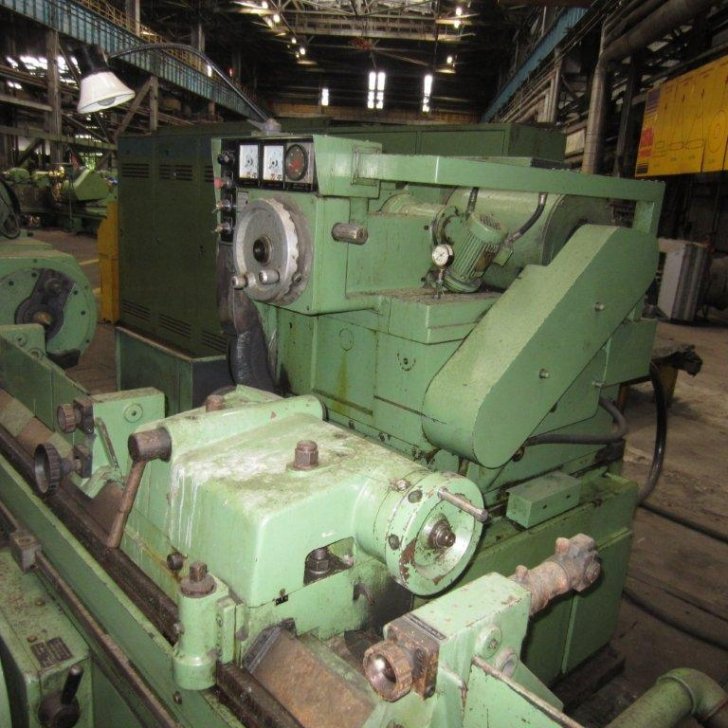

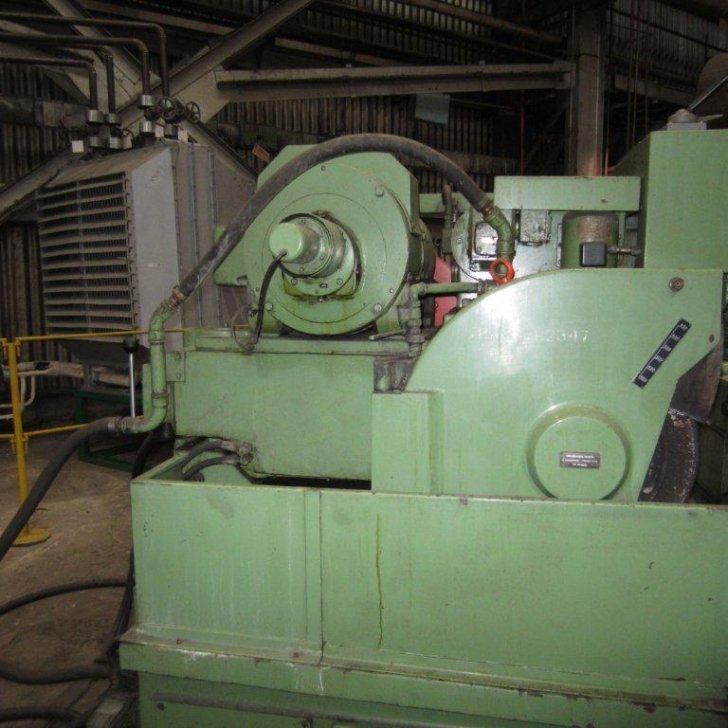

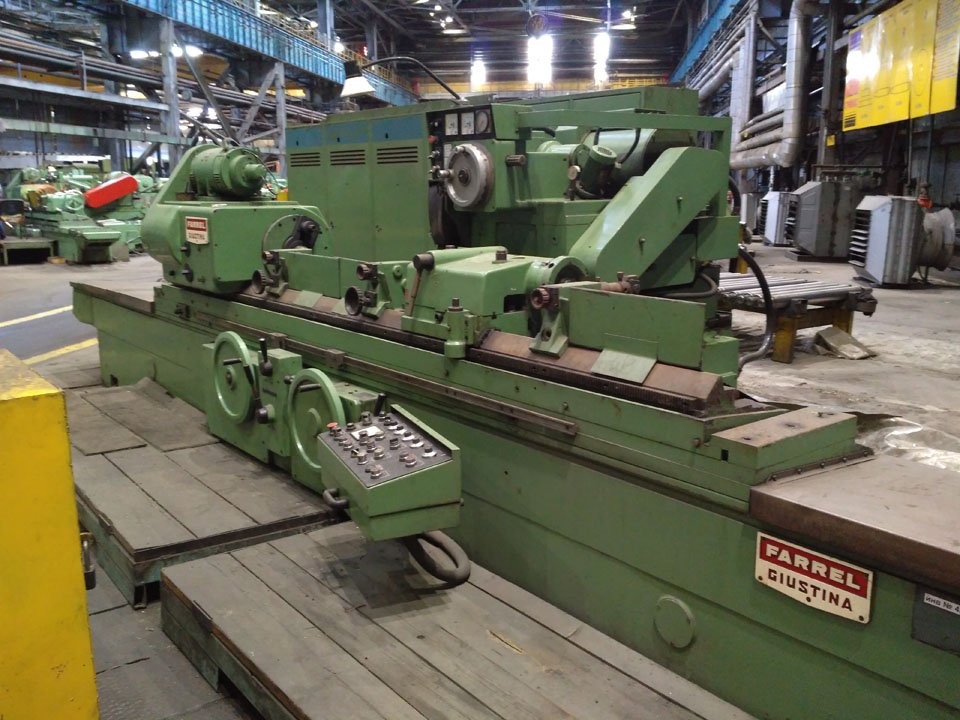

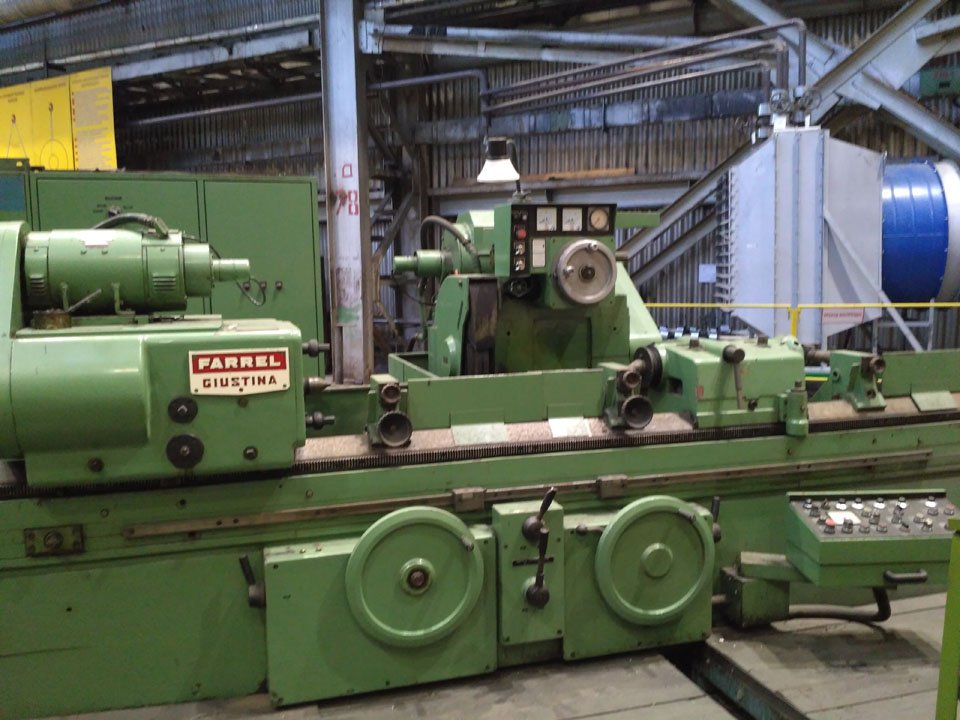

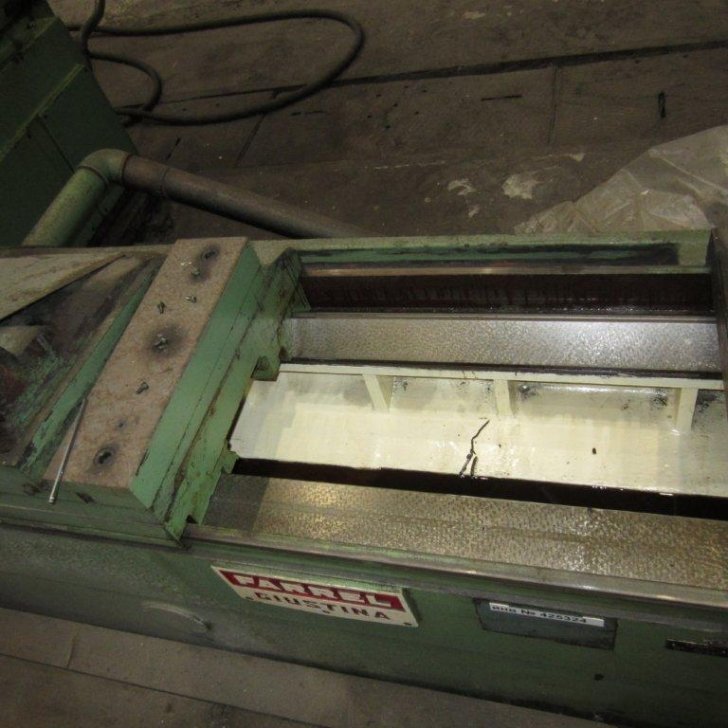

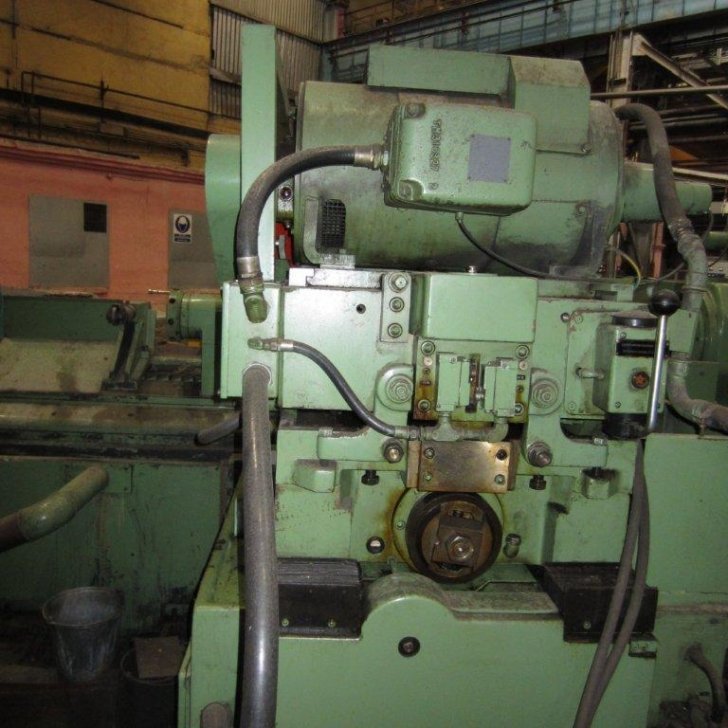

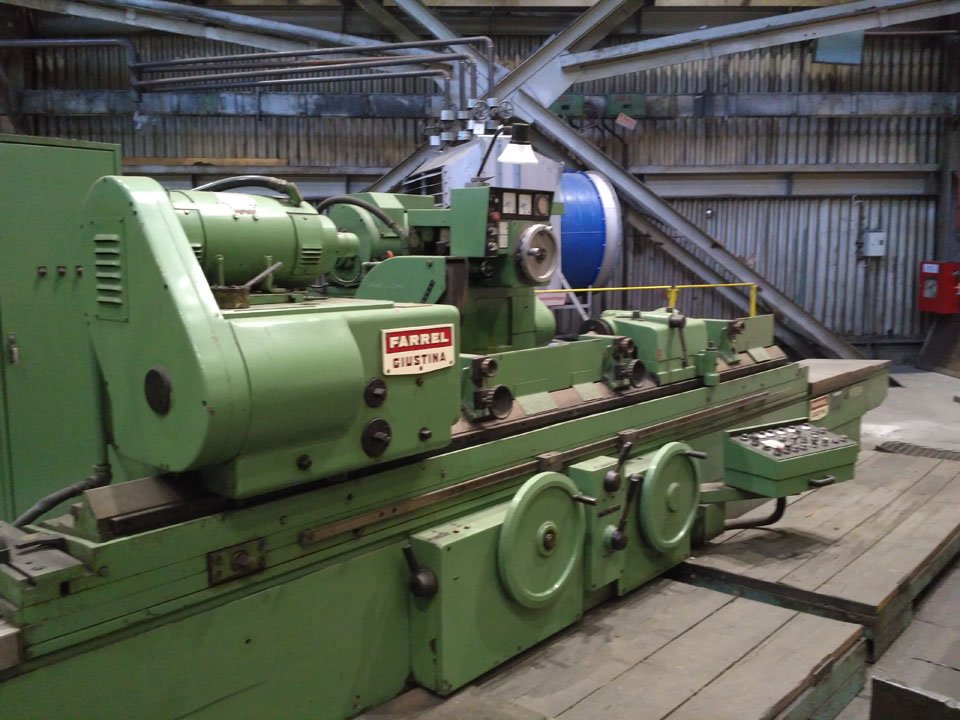

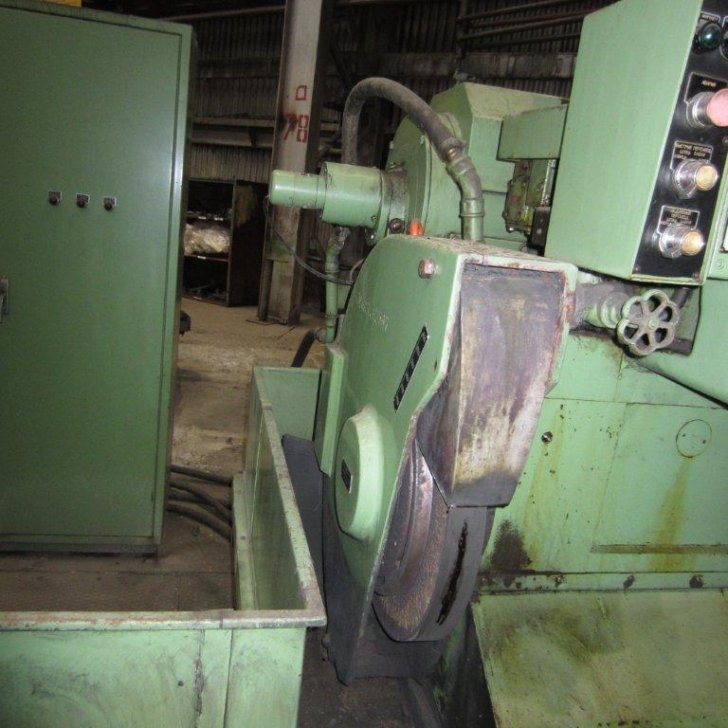

Heavy-duty roll grinding machine FARREL GIUSTINA TT 16x8 made in 1975 in Italy.
Specifications:
Max. work-piece diameter over bed: 508 mm
Max. grinding diameter with a new wheel: 407 mm
Distance between wheel centre and roll centre:
-Max.: 585 mm
-Min.: 215 mm
Diameter of a new wheel: 700 mm
Min. diameter of a wheel: 380 mm
Thickness of a standard wheel: 51 mm
Thickness of a special wheel: 76 mm
Opening diameter of a standard wheel: 304,8 mm
Max. roll weight: 2500 kg
Distance between centres: 2440 mm
Max. grinding length: 2485 mm
Angular table movement: 5 deg. - 4 deg.
Table length: 4360 mm
Machine length: 7890 mm
