Description:

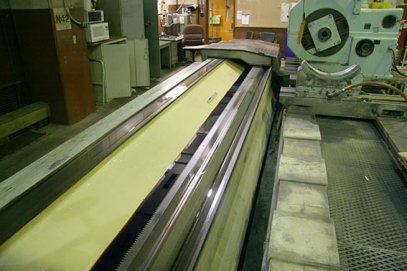

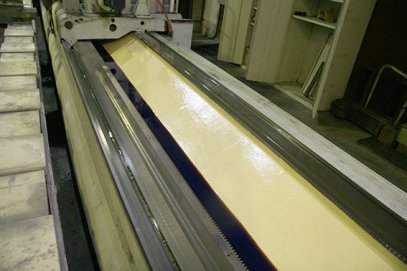

CNC Roll Grinding Machine WALDRICH SIEGEN Type: WST IV 70 x 13 000 with with HERCULES / WALDRICH SIEGENS latest CNC control HCC / KPM 10, modernized 2007 by HERCULES / WALDRICH SIEGENS
Specifications:
WORKING RANGE �
Max. roll � �
2000 mm
Min. roll � �
0 mm
Max. length of roll �
13 000 mm
Max. weight of roll �
70 ton
HEADSTOCK WITH STARTER MOTOR �
Main motor �
73,55 kW
Speeds of main motor, infinitely variable �
150 - 1800 rpm
Revolutions at face plate 1. step �
5 - 50 rpm
Revolutions at face plate 2. step �
50-500 rpm
Traverse adjustment �
600 mm
GRINDING CARRIAGE �
Grinding spindle speeds �
450 - 1800 rpm
Cutting speed �
45 m/s
Grinding spindle motor �
40 kW
Travel distance, longitudinal �
12 600 mm
Feed, infinitely variable �
60 - 4000 mm / min
Travel distance, traverse �
650 mm
Rapid adjustment �
400 mm / min
Continius infeed, abnormal �
0,00375 - 1,125 mm / min
Final infeed �
0,0056 - 0,056 mm / stroke
Manual adjustment, rough �
0,1 mm / rev.
Manual adjustment, fine �
0,025 mm / rev.
ABRASIVE WHEEL �
Dia. �
800 mm
Widths �
90 mm
Boring �
304,8 mm
TAIL STOCK �
Adjustment of quill �
260 mm
Adjustment way, traverse �
600 mm
Adjustment way, longitudinal �
13 400 mm
MAIN DIMENSIONS �
Length of machine �
20 200 mm
Width of machine �
4800 mm
Height of machine �
2200 mm
Weight of machine aprox. �
85 000 kg
Electric voltage �
575/60 V/Hz
TECHNOLOGY AND ACCESSORIES � �
Hydrostatic guide ways in Z and X axis and grinding spindle � �
New electrical cabinet in 2008 � �
New CNC control ALLEN BRADLEY 1395 in 2008 � �
Two bed system, grinding and work piece side are separately
� �
Bed with grinding carriage, operators platform and CNC control unit � �
Automatic grinding wheel DIA compensation (compensation of speed) � �
Automatic reversing of Z-axis when length (limit) of roll body will reached � �
Telescopic way covers for Z axis � �
2 steadies, hydrostatic � �
2 steady rest 200 - 500 mm � �
2 hydrostatic steady rest 755/780/860/890 mm � �
1 supporting steady, 2 quill design, 175 - 1050 mm � �
Filter unit � �
CNC controlled measuring device � �
Belt grinding device � �
The HCC/KPM 10 grinder controller is recognized as one of the most powerful and versatile grinding machine controller in the industry. Features and benefits of the HCC/KPM 10 include: Automatic grinding cycle operation using flexible, easily programmed grinding sequences including a variety of feed, speed and position options. Easy setup and operation. Modular design and plain-language fault and error messages make operation and maintenance easy. Electronic crowning, with which complex shapes can be ground into the roll with ease. Numerous hardware configurations available to tailor the controller to the customer needs. The control software can be customized for the customer's specific hardware and application requirements. Constant system self-diagnosis while running.
