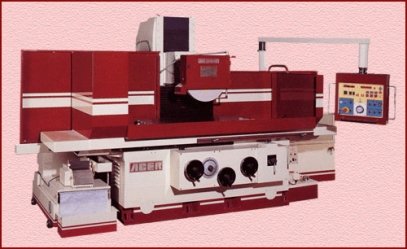

Japanese spindle motor 15 HP (20 HP optional).
Spindle center to table top: 33".
3 axes auto movement with Microtend Z axis NC control.
Operation of manual downfeed depends on three step micro setting and pulse generator.
Hitachi PLC electronic control.
Ball screw for crossfeed travel.
Crossfeed and table have double "V" slideways.
Spindle with six class 7 super precision angular contact ball bearings.
Grinding capacity is 24" x 80".
Spindle head housing is laminated with Turcite B.
