Chuck: 20" Dia., Electro-Magnetic
Maximum Swing Inside Water Guards: 21"
Maximum Height Under Wheel: 12"
Wheel Speed: 1200 RPM
Cortland 11" Segmented Wheel (4 Segments)
Variable Table Speeds: 15 to 75 RPM
Variable Servo Vertical Down Feed: .0001 to .100 IPM

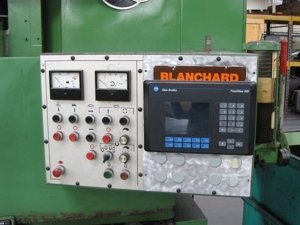

Digital Control with Servo Motor for Feed and Traverse, Fine Feed, Auto Spark Out, Digital Readout
15 HP Spindle Motor, 230/480 Volt
Variable Power D.C. Chuck Control
Trabon Automatic Lubrication System
Floor Space: 4' x 7' x 8' High
Weight, Approx.: 8,000#
