Description:

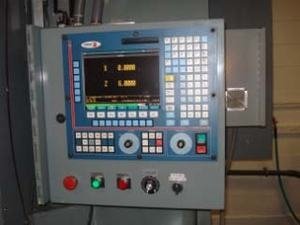

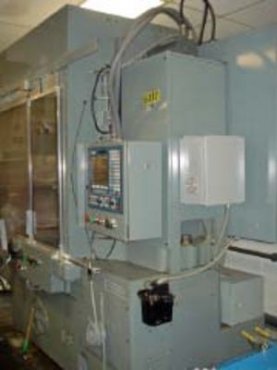

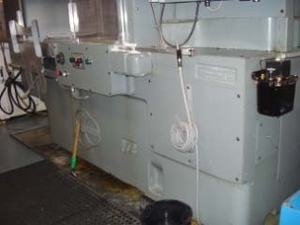

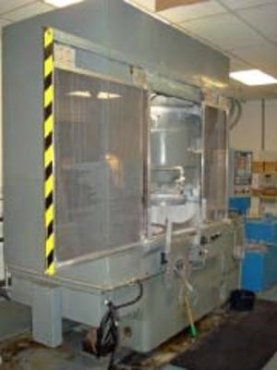

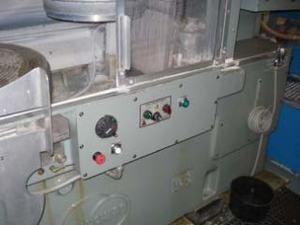

Blanchard 18-36 CNC Rotary Surface Grinder. Re-manufactured in 2006. Complete with 2-Axis Fagor 8040 CNC Control, ball screws, drives, electrics, guarding, auto lube system, added. Very precise and accurate.

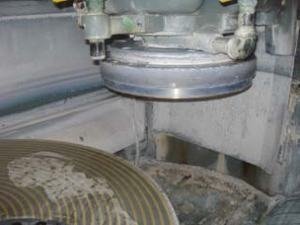

Equipped with 14" diamond wheel. 7/16" chuck life.
Photos, demo, inspection, available.
Specifications:
DRILLING CAPACITY 3-32 MM DIAMETER ENDMILL 30 MM DIA.
DRILLING DEPTH 1,500 MM
X-AXIS HOR. 2,000 MM
Y-AXIS VERT. 1,000 MM
Z-AXIS CROSS 1,700 MM
SPINDLE MOTOR 5.5/7.5 KW TAPPING MOTOR 2.2 KW
HIGH PRESSURE PUMP 7.5 KW
FEED RATE (Z-AXIS) 0-3000 MM/MIN
RAPID TRAVERSE 5,000 MM/MIN
MAX TABLE LOAD 20,000 KG
TABLE AREA 1,200 MM X 2,600 MM
CNC CONTROL FANUC O-M
COOLANT TANK CAPACITY 1,500 L
FLOORSPACE 6550 X 5280 X 3000 MM
WEIGHT 26,000 KG
POWER REQUIREMENTS 25 KW
Dimensions:
114" x 50" x 100" high
Weight:
15000 (LBS)
