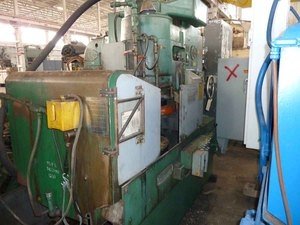

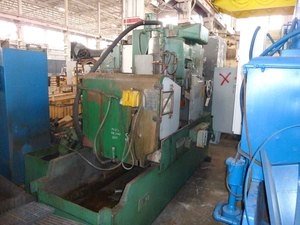

Blanchard 20-36, 36" Vertical Spindle Rotary Surface Grinder-Remanufactured with warranty
Specifications:
Standard Specifications - SUBJECT TO VERIFICATION

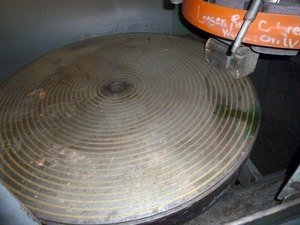

36" Magnetic Chuck Diameter, Approximately .437" Chuck Life
18" Approximate Range Over Chuck With New Wheel
20" Diameter of Wheel Chuck, Solid Wheel Style
(6) Ranges of Chuck Speeds, 6, 9, 12, 18, 25, 33 RPM
Feed 0.004 - 0.080 IPM
720 RPM Wheel Speed
30 HP, 3 Phase, 60 Cycle, 230/420 Volt,
Floor Space 11'8"L x 8'4"W x 9'1"Max./8'8"Min. Height
Approx. Weight 13,500 lbs.
Wet base (coolant in base)
Re-manufactured with warranty-See full re-manufactured specifications at www.fpmiller.com
